3rd Test

🎯 Objectives • 📝 Summary • 🧰 Tools • ⚙️ Installation • 📐 Algorithm • 🎮 Simulation • 📊 Results • 📚 Resources

🎯 Objectives

The goal is to build an autonomous navigation system using ROS2 and Gazebo for the TekBot robot. Tasks:

Implement a pathfinding algorithm (A*, Dijkstra, or RRT)
Handle obstacle avoidance
Simulate in Gazebo and visualize with RViz2

📝 Summary

This ROS2 project implements a complete autonomous navigation pipeline for the TekBot robot in a simulated maze environment. It integrates a pathfinding algorithm to compute the optimal route between two points while dynamically avoiding obstacles. The solution is fully tested in Gazebo and visualized in RViz2, showcasing real-time decision-making and obstacle handling.

📁 Project Structure

tekbot_ws/src/tekbot_pathfinding/
├── config/
│   ├── nav2_config.rviz
│   └── nav2_params.yaml
├── launch/
│   └── pathfinding.launch.py
├── tekbot_pathfinding/
│   ├── __init__.py
│   └── path_planner.py
├── package.xml
├── setup.py

🧰 Tools & Requirements

Tool	Version
ROS2	Humble Hawksbill
OS	Ubuntu 22.04
Simulator	Gazebo
Visualizer	RViz2
SLAM	SLAM Toolbox
Robot	TekBot

⚙️ Installation & Configuration

1. Clone environment

git clone https://github.com/charif-tekbot/tekbot_sim.git
cd tekbot_sim
colcon build
source install/setup.bash

2. Launch robot in Gazebo

ros2 launch maze_solving tekbot_maze.launch.py

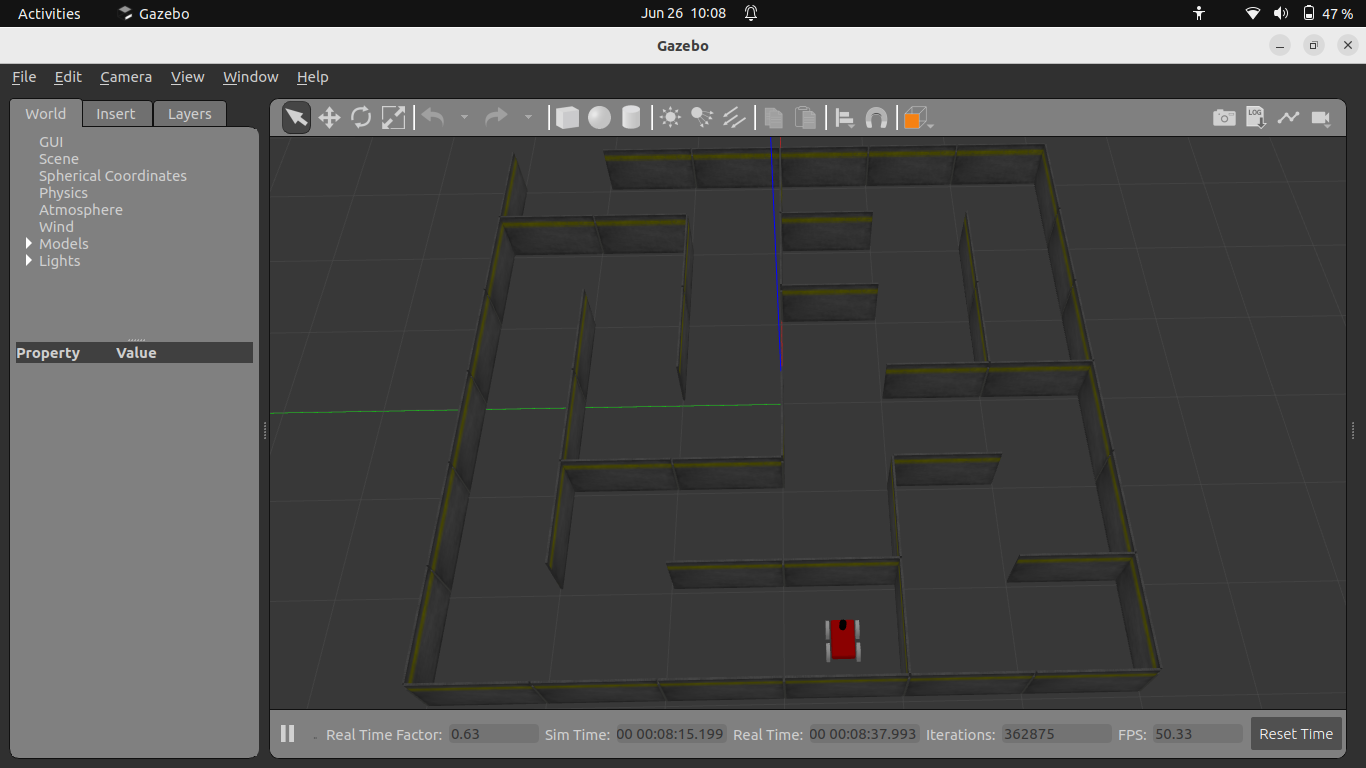

Figure 1: Robot visualization in Gazebo

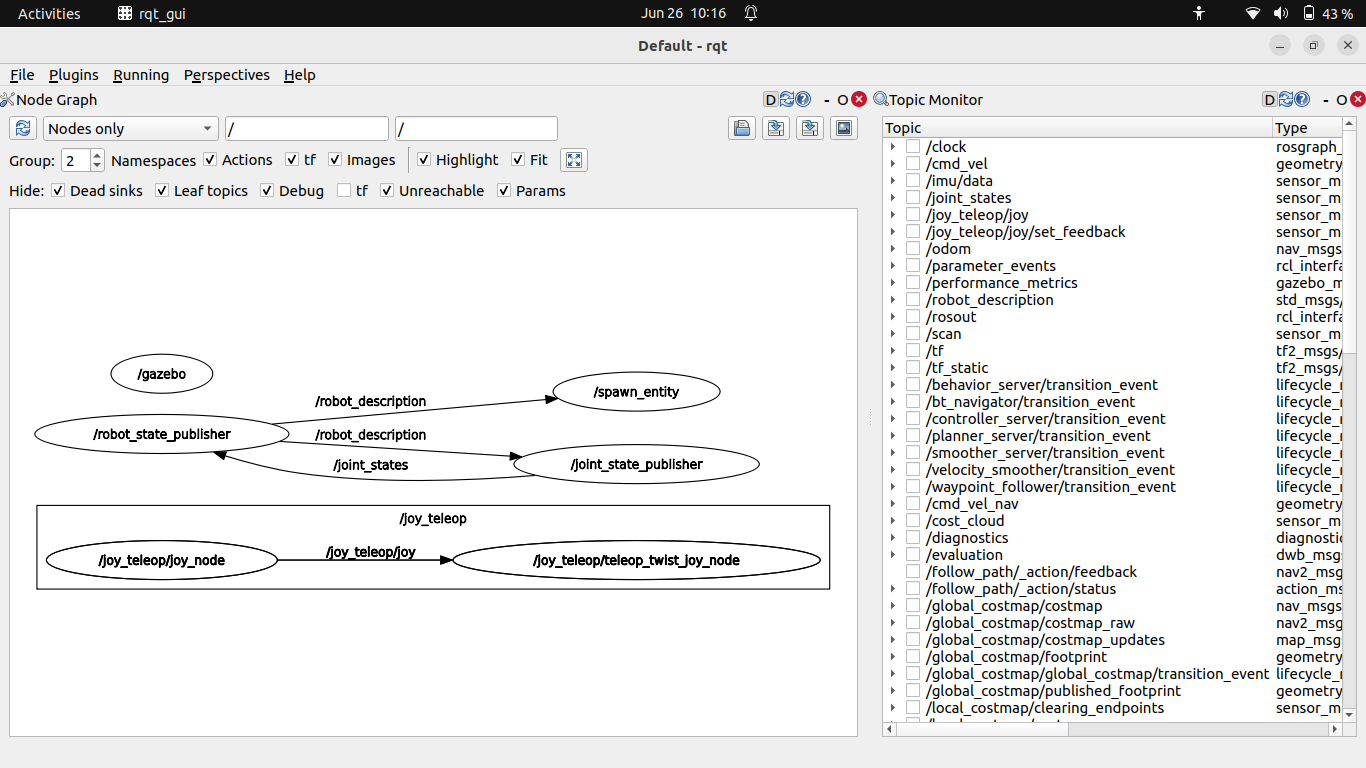

Figure 2: RQT interface for robot control

📐 Algorithm & Implementation

🗺️ Step 1 – Generate the map using SLAM Toolbox

To enable autonomous navigation, we first generated a 2D map using slam_toolbox while driving the robot through the maze.

After launching the robot and the simulation environment in Gazebo:

ros2 launch maze_solving tekbot_maze.launch.py

Then launch the Navigation Stack (Nav2):

ros2 launch nav2_bringup navigation_launch.py use_sim_time:=true

Start SLAM Toolbox to build the map in real time:

ros2 launch slam_toolbox online_async_launch.py use_sim_time:=true

Open RViz2 with the default Nav2 configuration:

ros2 run rviz2 rviz2 -d /opt/ros/humble/share/nav2_bringup/rviz/nav2_default_view.rviz

After disabling the Global Planner and Controller plugins in RViz, we obtain the following view:

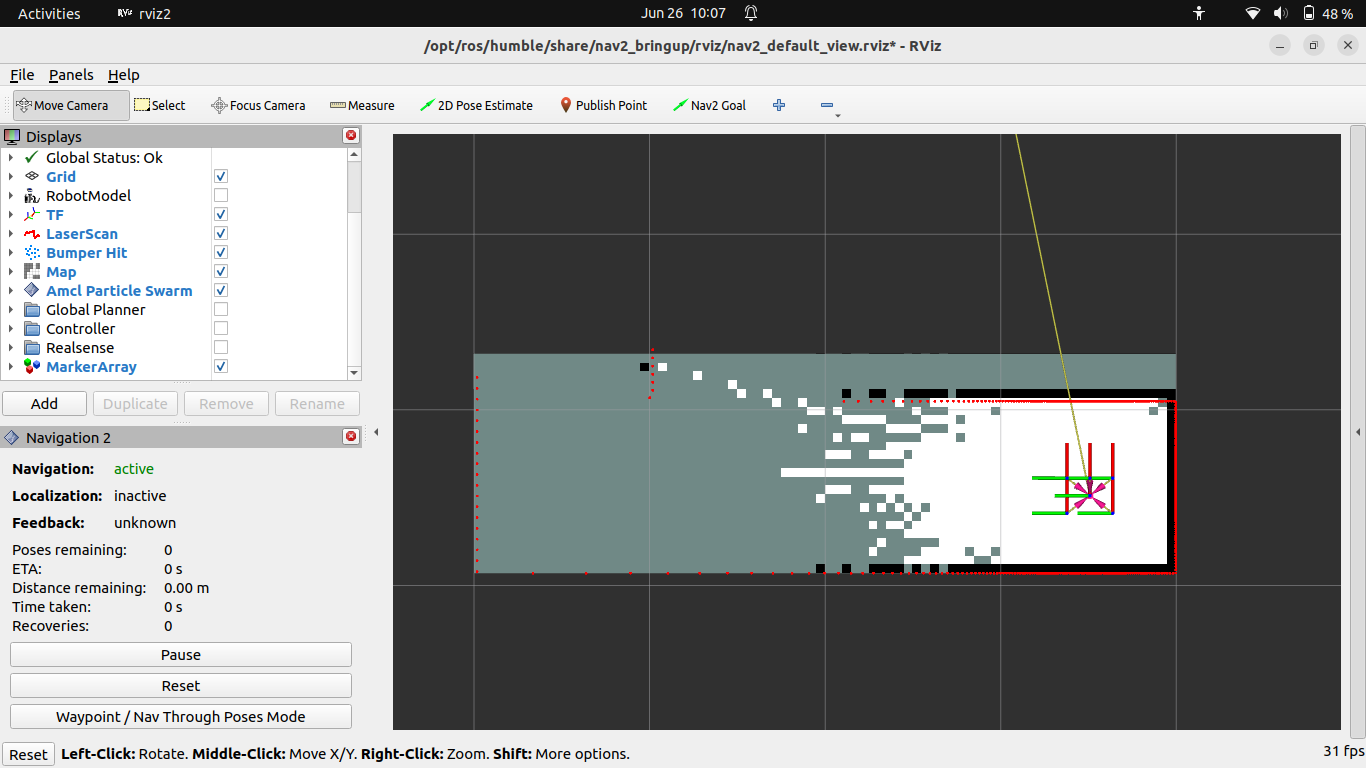

RViz Mapping Interface
Figure 3: RViz interface showing the mapping process

Use the following command to manually move the robot in the environment using the keyboard:

ros2 run teleop_twist_keyboard teleop_twist_keyboard

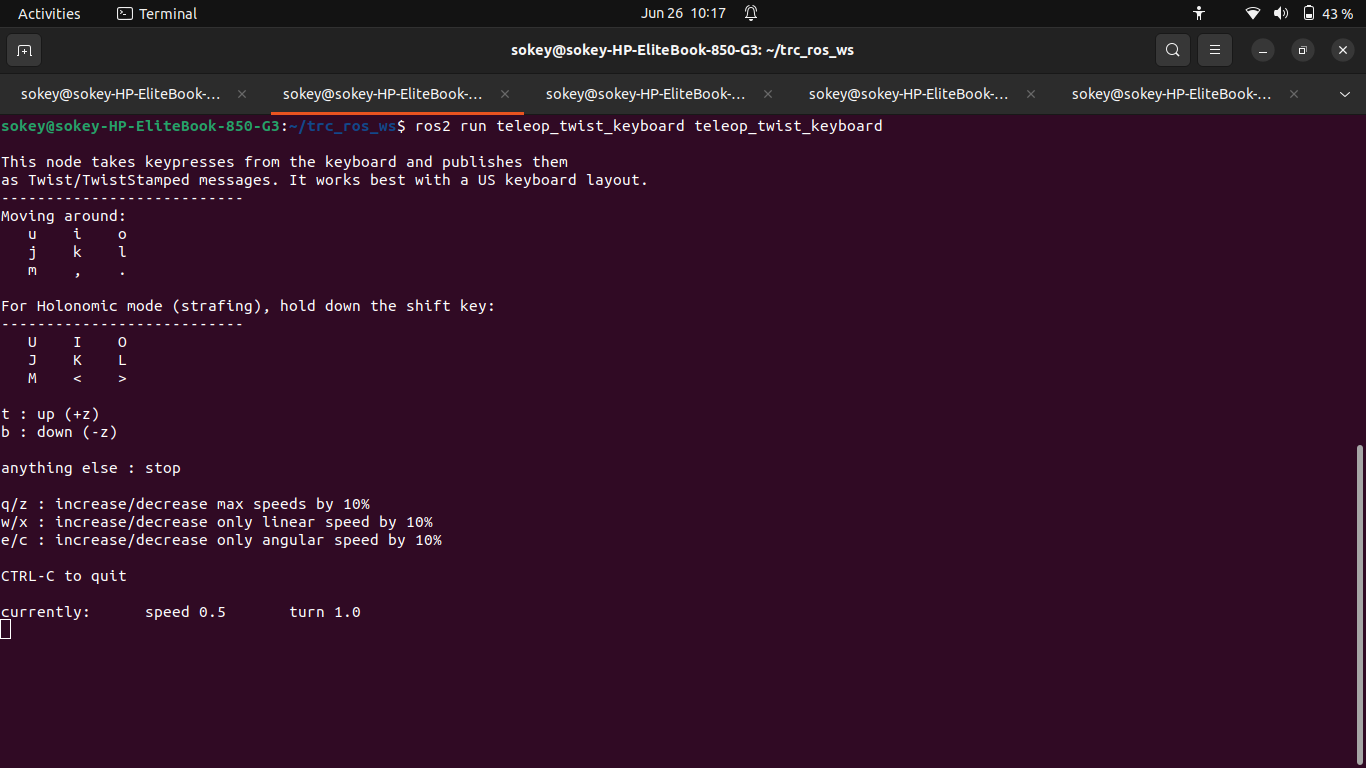

Teleop Terminal
Figure 4: Terminal window for teleoperation commands

Now we use keyboard keys to manually control the robot as it explores the maze, o to move forward, m to move backwar, j to rotate left, l to rotate right. As the robot navigates through the environment, the map is progressively built and visualized in real-time within RViz.

Once the environment has been sufficiently explored, save the generated map:

ros2 run nav2_map_server map_saver_cli -f my_map

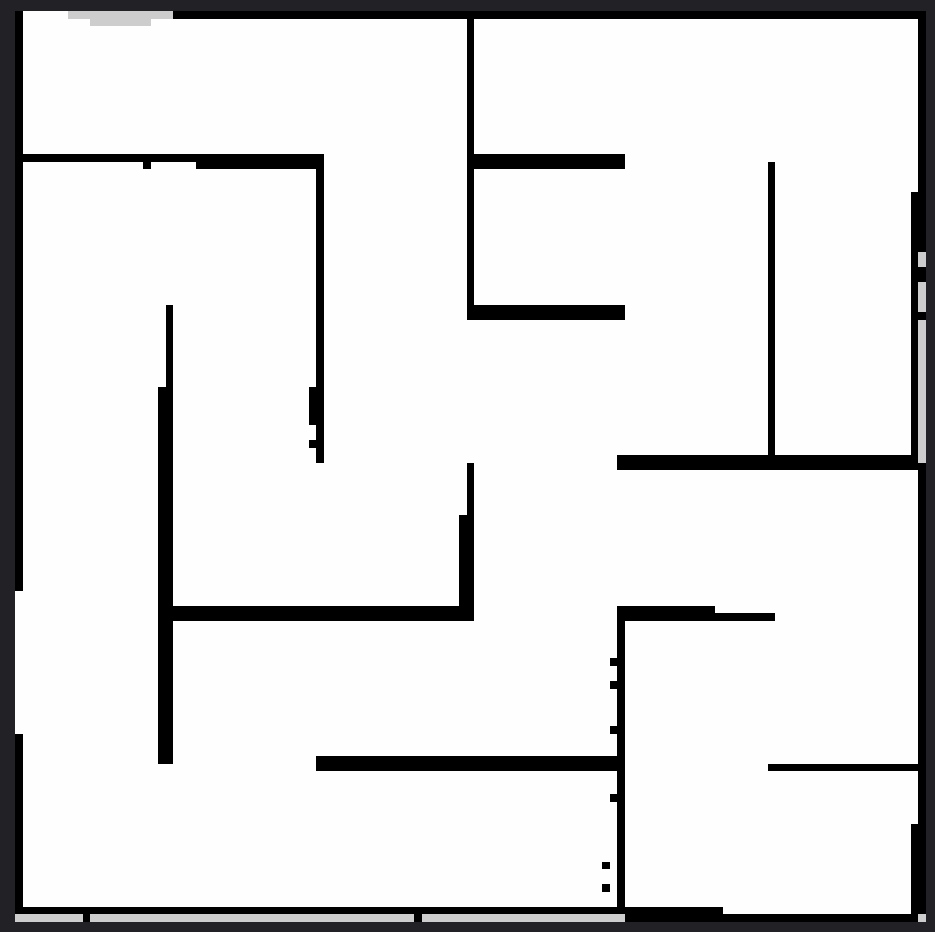

SLAM Map Generated
Figure 5: Map generated by SLAM Toolbox (white = free, black = occupied, gray = unknown)

Map YAML File
Figure 6: YAML file associated with the map, containing metadata and the path to the image file.

Explanation of the my_map.yaml file:
This YAML file contains the necessary information for ROS2 to use the generated map. It includes:

The path to the map image (usually a PNG or PGM file)
The map resolution (meters/pixel)
The origin of the map in the world frame
Thresholds to distinguish free and occupied areas
The mode for interpreting the map (e.g., trinary)

This file allows the map server (map_server) to correctly load the map for autonomous navigation.

We implemented an A* pathfinding algorithm on top of the generated occupancy grid. Below are the main components of the implementation.

🧠 Nav 2 Paramaters

controller_server:
  ros__parameters:
    controller_frequency: 10.0
    max_x_velocity: 0.5
    xy_goal_tolerance: 0.25
    use_sim_time: False

Explanation:
This YAML snippet configures the Nav2 controller server.

controller_frequency sets how often the controller runs (10 Hz).
max_x_velocity limits the robot’s maximum linear speed to 0.5 m/s.
xy_goal_tolerance defines how close the robot must get to the goal (0.25 meters).
use_sim_time specifies whether to use simulation time (here, set to false).

📍 A* Pathfinding Lauch

from launch import LaunchDescription
from launch_ros.actions import Node
from ament_index_python.packages import get_package_share_directory
import os

def generate_launch_description():
    config_dir = os.path.join(get_package_share_directory('tekbot_pathfinding'), 'config')

    return LaunchDescription([
        Node(
            package='nav2_map_server',
            executable='map_server',
            name='map_server',
            output='screen',
            parameters=[{'yaml_filename': os.path.join(config_dir, 'maze.yaml')}]
        ),
        Node(
            package='tekbot_pathfinding',
            executable='path_planner',
            name='path_planner',
            output='screen',
            parameters=[os.path.join(config_dir, 'nav2_params.yaml')]
        ),
        Node(
            package='rviz2',
            executable='rviz2',
            name='rviz2',
            arguments=['-d', os.path.join(config_dir, 'nav2_config.rviz')],
            output='screen'
        )
    ])

Explanation:
This launch file starts the main nodes for pathfinding:

Launches the map server with a specified YAML map file.
Starts the custom path_planner node, which implements the A* algorithm.
Launches RViz2 with a predefined configuration for visualization. It ensures all components needed for autonomous navigation and visualization are started together.

🚦 Path Planner

#!/usr/bin/env python3
import rclpy
from rclpy.node import Node
from nav_msgs.msg import OccupancyGrid, Path
from geometry_msgs.msg import PoseStamped, Twist
import numpy as np
import heapq
import math

class AStarPlanner(Node):
    def __init__(self):
        super().__init__('a_star_planner')

        # Subscriptions
        self.create_subscription(OccupancyGrid, '/map', self.map_callback, 10)
        self.create_subscription(PoseStamped, '/goal_pose', self.goal_callback, 10)

        # Publishers
        self.path_pub = self.create_publisher(Path, '/plan', 10)
        self.cmd_vel_pub = self.create_publisher(Twist, '/cmd_vel', 10)

        # Variables
        self.map_data = None
        self.robot_pose = [0.0, 0.0]  # x, y

    def map_callback(self, msg):
        """Stocke la carte en mémoire"""
        self.map_data = msg
        self.get_logger().info(f"Carte chargée (résolution: {msg.info.resolution} m/pixel)")

    def goal_callback(self, msg):
        """Exécute A* quand un nouveau goal arrive"""
        if self.map_data is None:
            self.get_logger().warn("Carte non initialisée !")
            return

        start = self.robot_pose
        goal = [msg.pose.position.x, msg.pose.position.y]

        path = self.a_star(start, goal)
        self.publish_path(path)

    def a_star(self, start, goal):
        """Implémentation complète de A*"""
        grid = np.array(self.map_data.data).reshape(
            (self.map_data.info.height, self.map_data.info.width))

        start_px = self.world_to_pixel(start)
        goal_px = self.world_to_pixel(goal)

        open_set = []
        heapq.heappush(open_set, (0, start_px))
        came_from = {}
        g_score = {start_px: 0}
        f_score = {start_px: self.heuristic(start_px, goal_px)}

        while open_set:
            current = heapq.heappop(open_set)[1]

            if current == goal_px:
                return self.reconstruct_path(came_from, current)

            for neighbor in self.get_neighbors(current, grid):
                tentative_g_score = g_score[current] + 1

                if neighbor not in g_score or tentative_g_score < g_score[neighbor]:
                    came_from[neighbor] = current
                    g_score[neighbor] = tentative_g_score
                    f_score[neighbor] = tentative_g_score + self.heuristic(neighbor, goal_px)
                    heapq.heappush(open_set, (f_score[neighbor], neighbor))

        self.get_logger().warn("A* : Pas de chemin trouvé !")
        return []

    def get_neighbors(self, pos, grid):
        """Retourne les voisins valides (4-connexité)"""
        neighbors = []
        for dx, dy in [(0,1), (1,0), (0,-1), (-1,0)]:
            x, y = pos[0] + dx, pos[1] + dy
            if 0 <= x < grid.shape[0] and 0 <= y < grid.shape[1]:
                if grid[x, y] < 50:  # Seuil d'obstacle
                    neighbors.append((x, y))
        return neighbors

    def heuristic(self, a, b):
        """Distance de Manhattan"""
        return abs(a[0] - b[0]) + abs(a[1] - b[1])

    def reconstruct_path(self, came_from, current):
        """Reconstruit le chemin depuis le goal"""
        path = [current]
        while current in came_from:
            current = came_from[current]
            path.append(current)
        path.reverse()
        return [self.pixel_to_world(p) for p in path]

    def world_to_pixel(self, world_pos):
        """Convertit les coordonnées réelles -> indices de grille"""
        return (
            int((world_pos[0] - self.map_data.info.origin.position.x) / self.map_data.info.resolution),
            int((world_pos[1] - self.map_data.info.origin.position.y) / self.map_data.info.resolution)
        )

    def pixel_to_world(self, pixel_pos):
        """Convertit les indices -> coordonnées réelles"""
        return (
            pixel_pos[0] * self.map_data.info.resolution + self.map_data.info.origin.position.x,
            pixel_pos[1] * self.map_data.info.resolution + self.map_data.info.origin.position.y
        )

    def publish_path(self, path):
        """Publie le chemin dans RViz"""
        path_msg = Path()
        path_msg.header.frame_id = 'map'

        for point in path:
            pose = PoseStamped()
            pose.pose.position.x = point[0]
            pose.pose.position.y = point[1]
            path_msg.poses.append(pose)

        self.path_pub.publish(path_msg)

def main(args=None):
    rclpy.init(args=args)
    planner = AStarPlanner()
    rclpy.spin(planner)
    planner.destroy_node()
    rclpy.shutdown()

if __name__ == '__main__':
    main()

Explanation:
This Python node implements the A* pathfinding algorithm:

Subscribes to the map and goal topics.
When a goal is received, it computes the shortest path on the occupancy grid using A*.
Publishes the planned path for visualization in RViz2.
Converts between world and grid coordinates, checks for obstacles, and reconstructs the path from start to goal. This node is the core of autonomous navigation, enabling the robot to plan and follow optimal paths in the environment.

🎮 Simulation & Visualization

The system was tested inside the tekbot_maze.world file using Gazebo. RViz2 was used to visualize the robot, the map, and the planned path in real time.

📊 Results & Analysis

Scenario	Expected Outcome	Result
Path planning	Shortest path found	✅ Success
Obstacle in direct path	Alternate path selected	✅ Success
Simulation launch	Environment starts properly	✅ Success
Visualization	Path visible in RViz2	✅ Success

🐞 Error Log

Date	Error encountered	Cause	Solution provided
23/06/2025	Error generating the map with slam_toolbox	The environment variable was set to Cyclone DDS instead of Fast DDS.	Changed the environment variable to use Fast DDS (`export RMW_IMPLEMENTATION=rmw_fastrtps_cpp`).

📚 Resources

👥 Authors

Agbodja Marzoukath
Ife Leonce Comlan
Chatigre Larissa

Test 3 - Tekbot Robotics Challenge
Date: June 2025
Language: Python 3 / ROS2
Framework: ROS2 Humble

> Framework: ROS2 Humble
