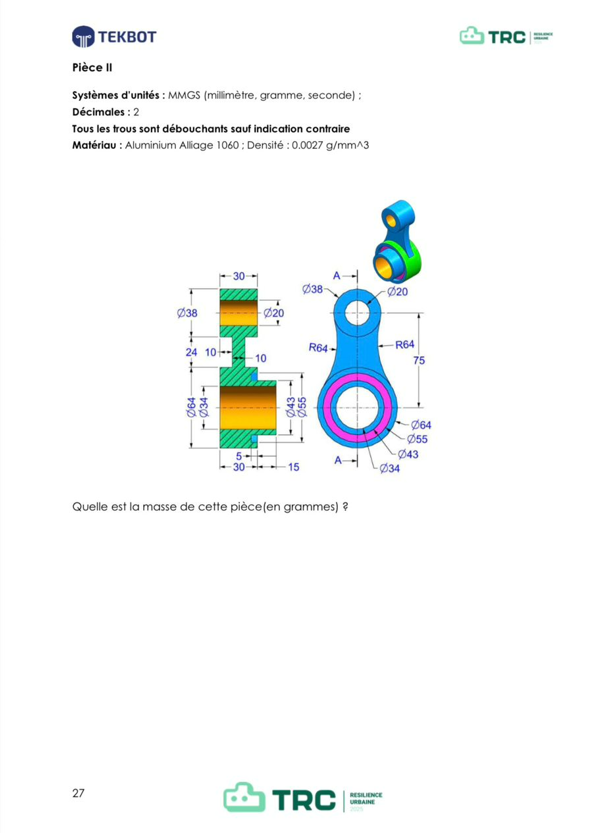

PIECE 2 REALIZATION

---

Short Demo

---

Link to Download: Link to download

TOOLS USED AND THEIR ROLES

• Extruded Boss/Base: Creates solid volume by extruding 2D sketches
• Extruded Cut: Removes material from 3D solids
• Smart Dimension: Adds/modifies dimensions (lengths, diameters, angles)

---

INITIAL SETUP

1. Click application icon → File → Part
2. Select upper plane

---

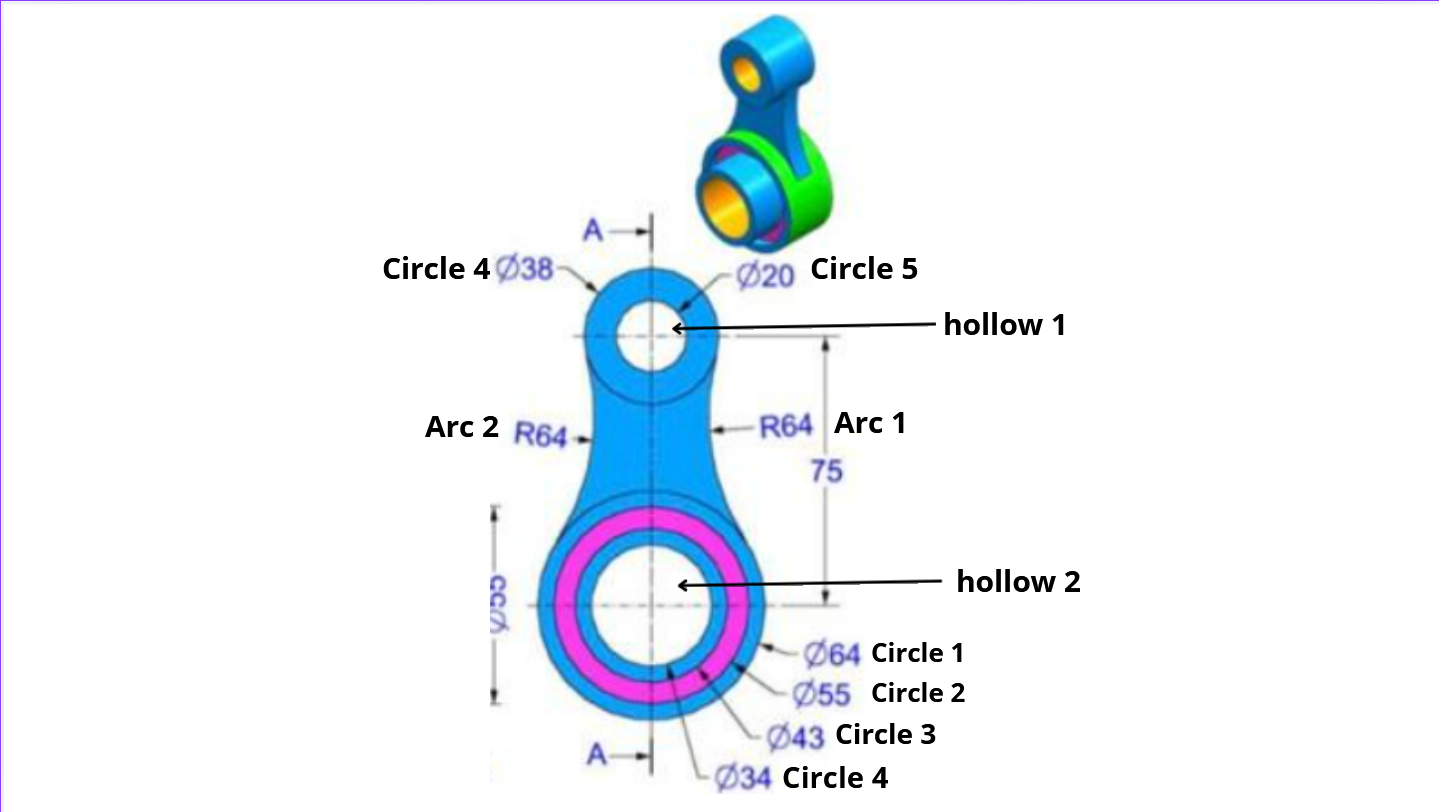

CREATING 6 CIRCLES & 2 ARCS

Steps:

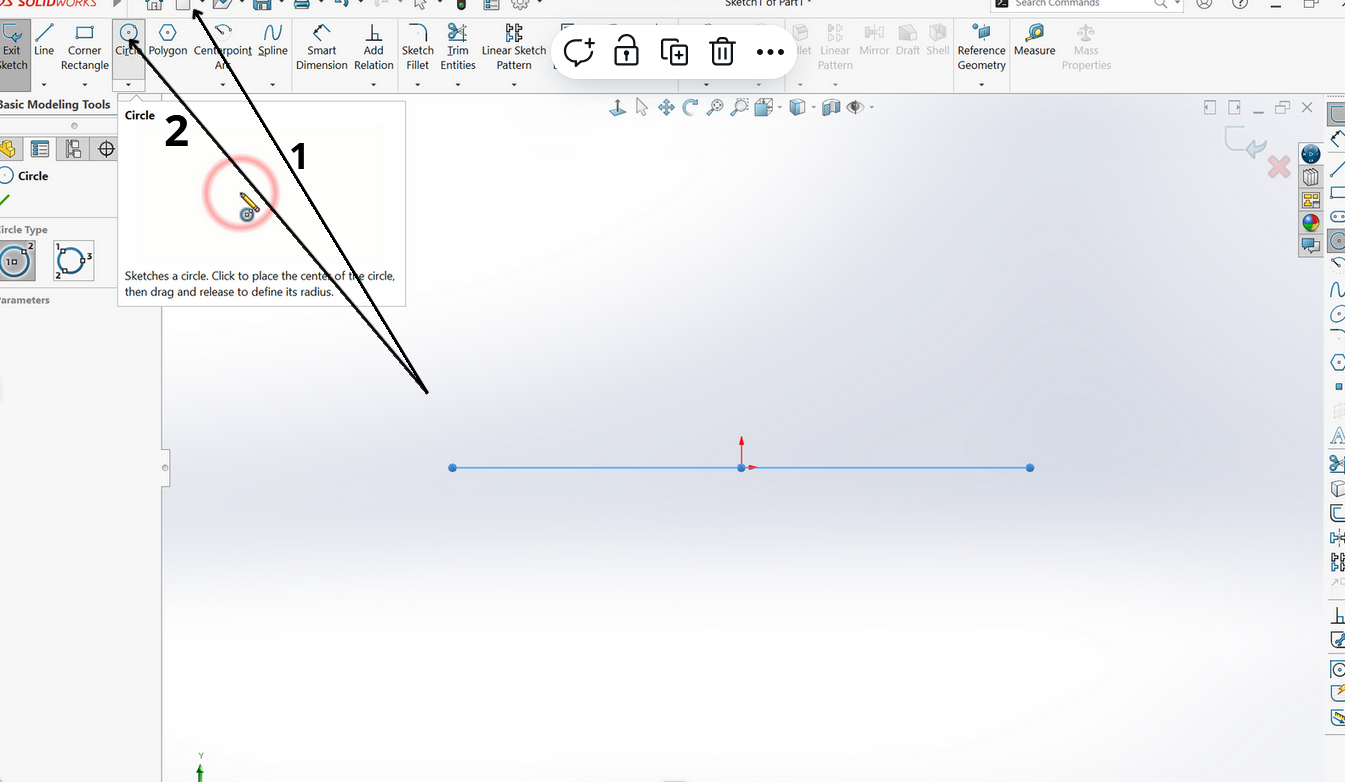

1. Select Circle tool
2. Draw:
   • 4 concentric circles (shared center)
   • 2 additional concentric circles (second center)

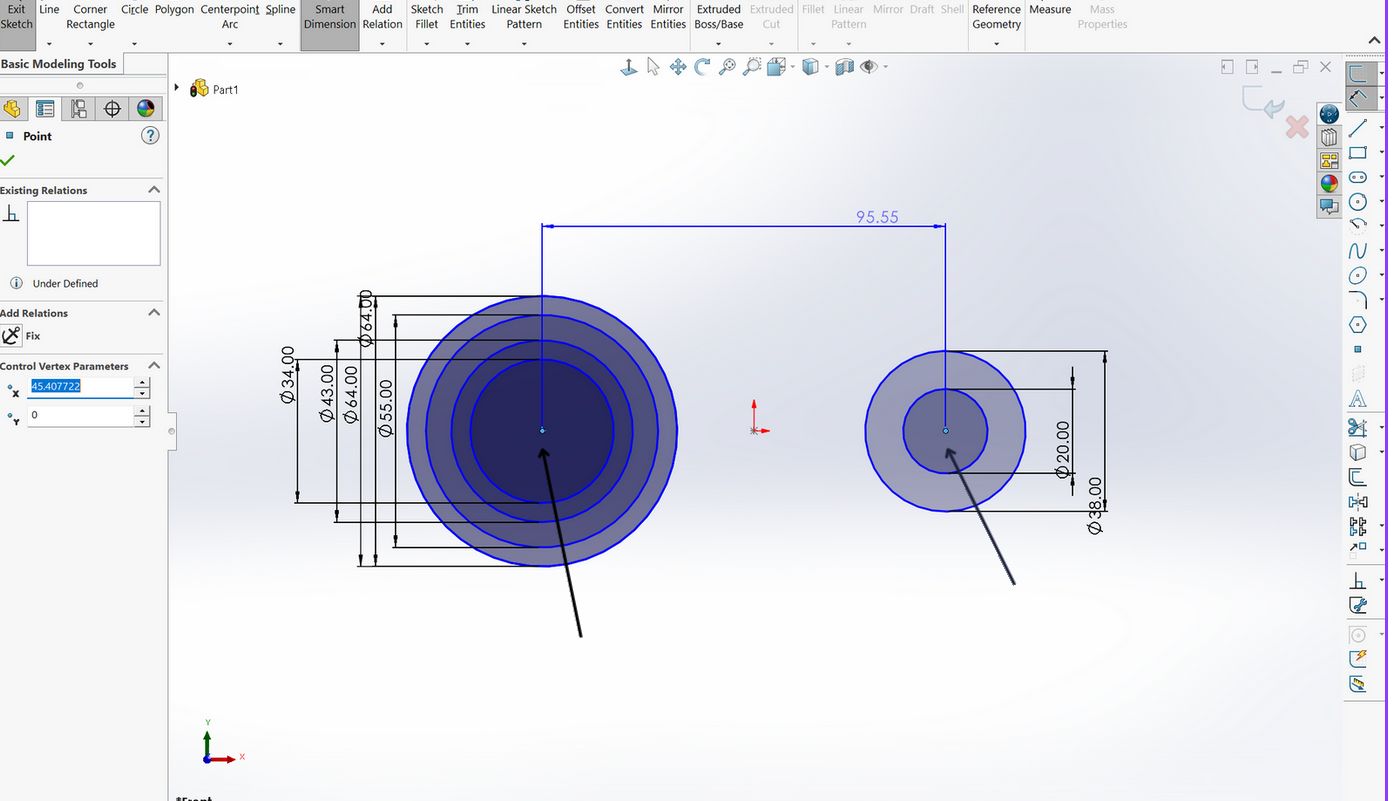

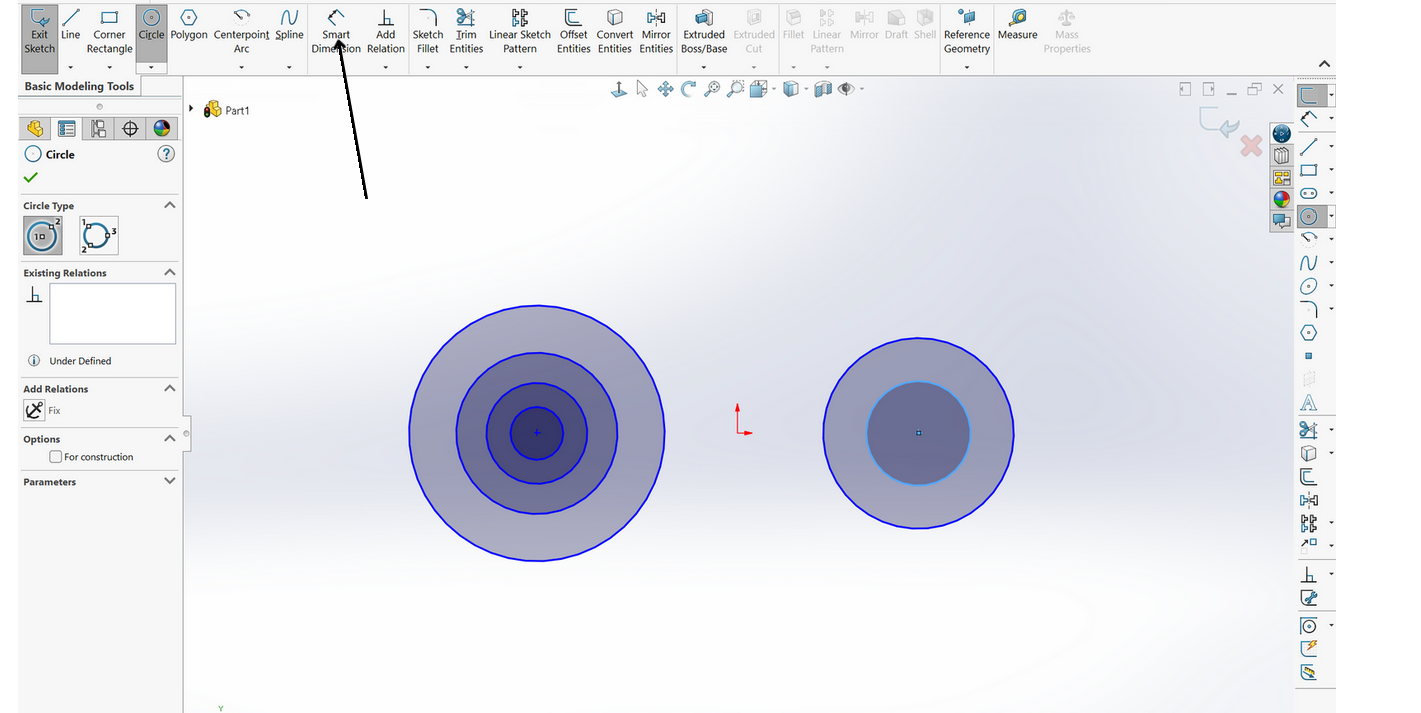

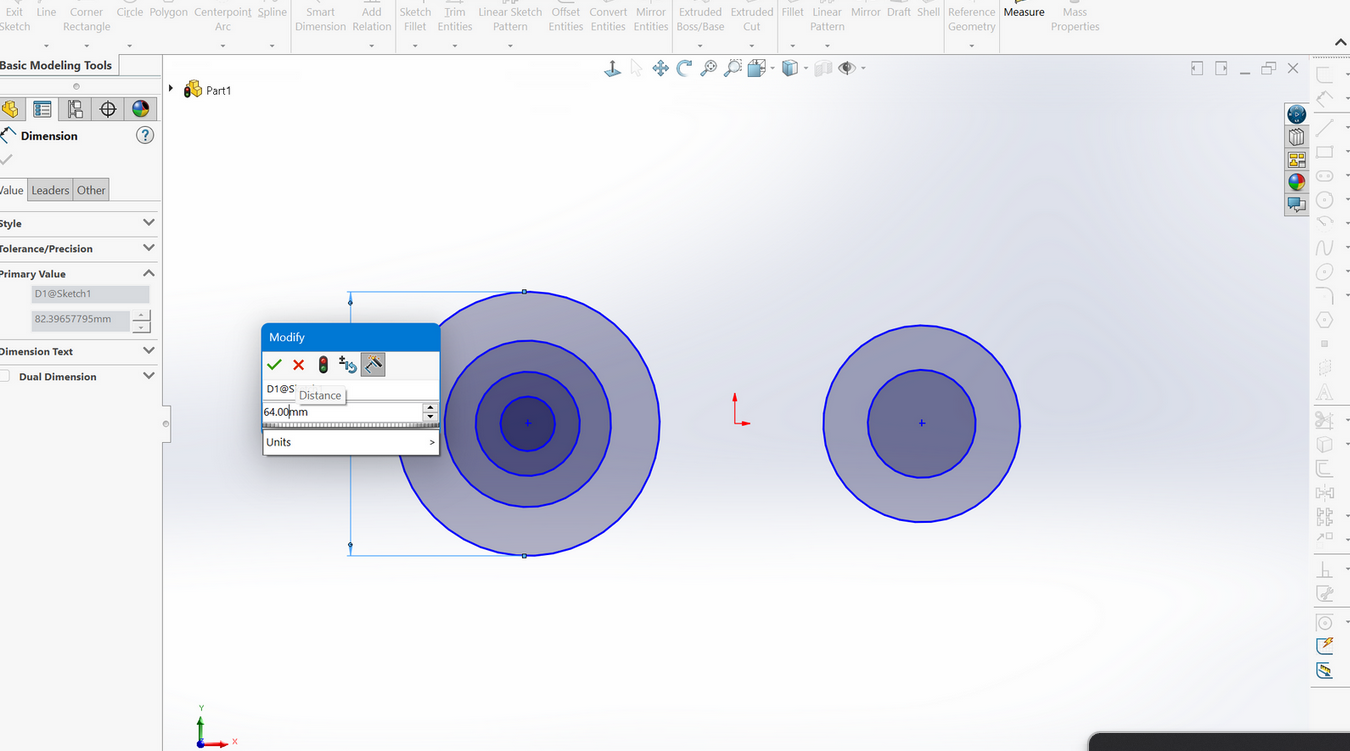

3. Use Smart Dimension to:
   • Resize each circle
   • Set distance between centers

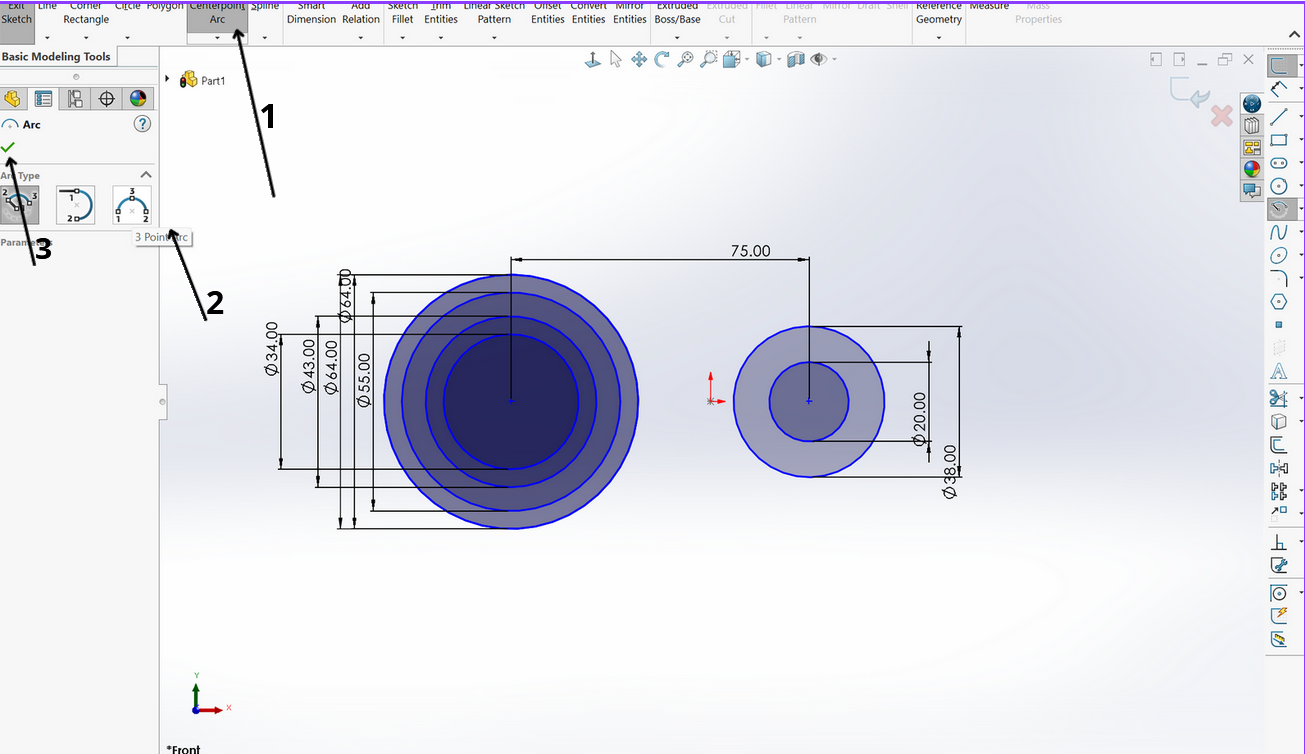

4. Create arcs with Centerpoint Arc tool
5. Dimension arcs per specifications

💡 Refer to images for visual guidance

---

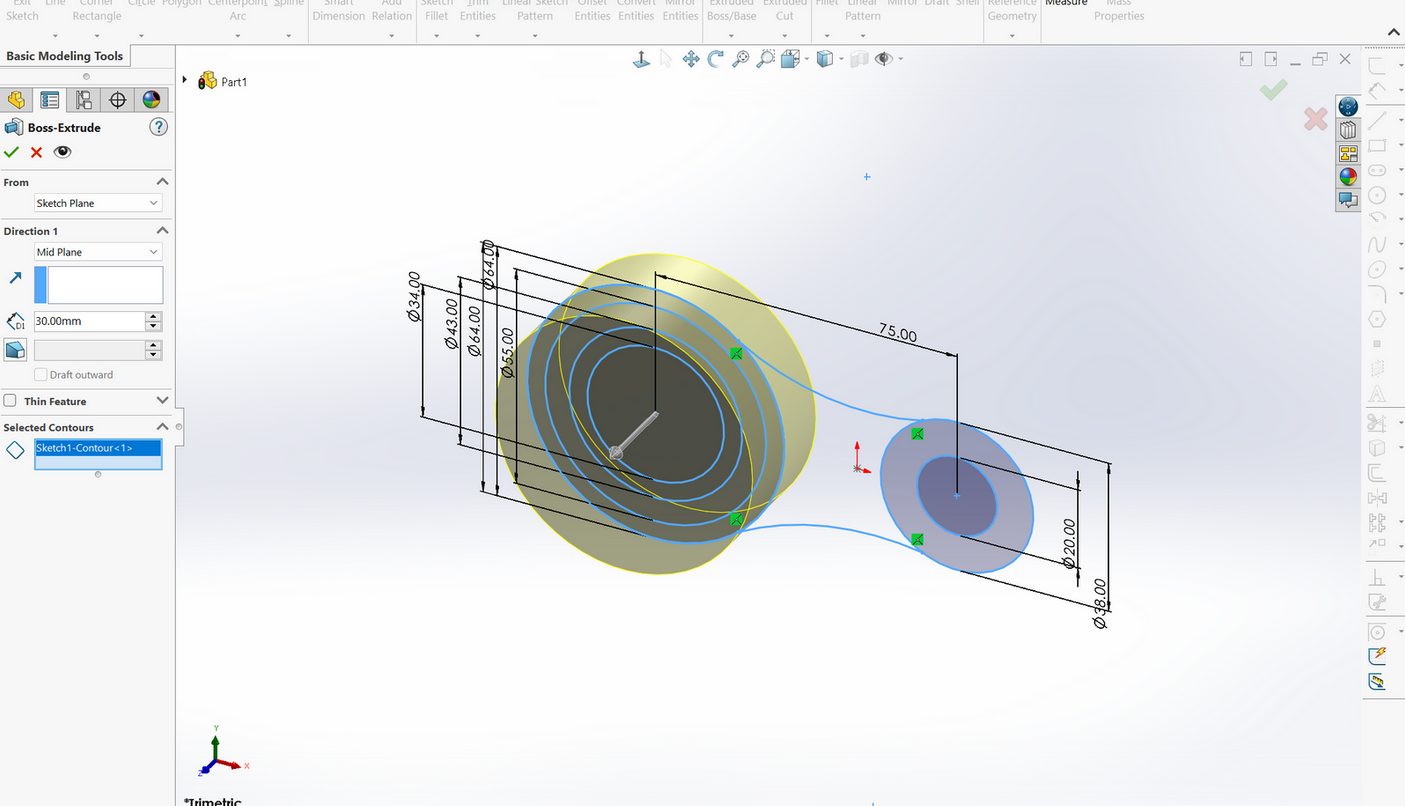

2D TO 3D CONVERSION (CIRCLES)

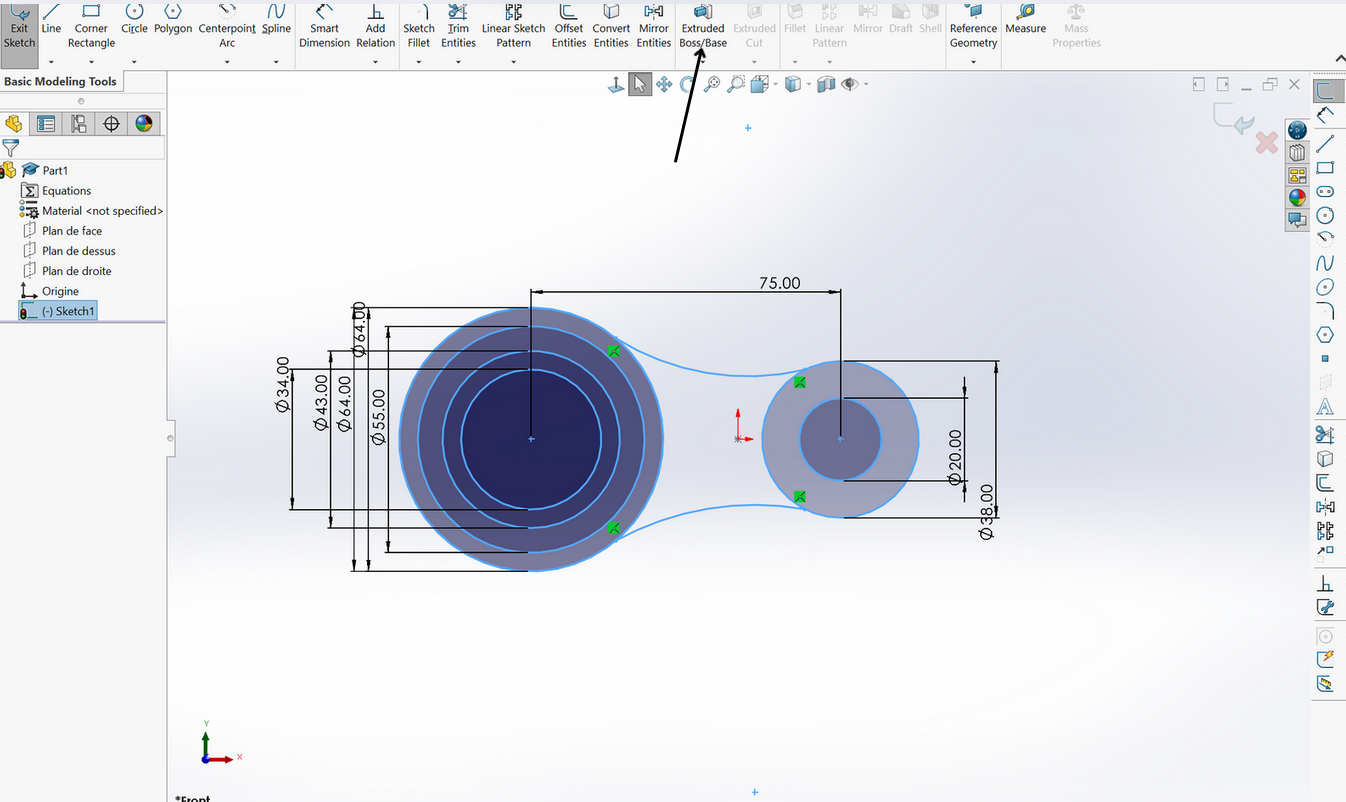

1. Click Extruded Boss
2. Set parameters per task requirements
3. Select contours:
   • 64mm diameter circle
   • 38mm diameter circle
4. Confirm with green checkmark ✓

---

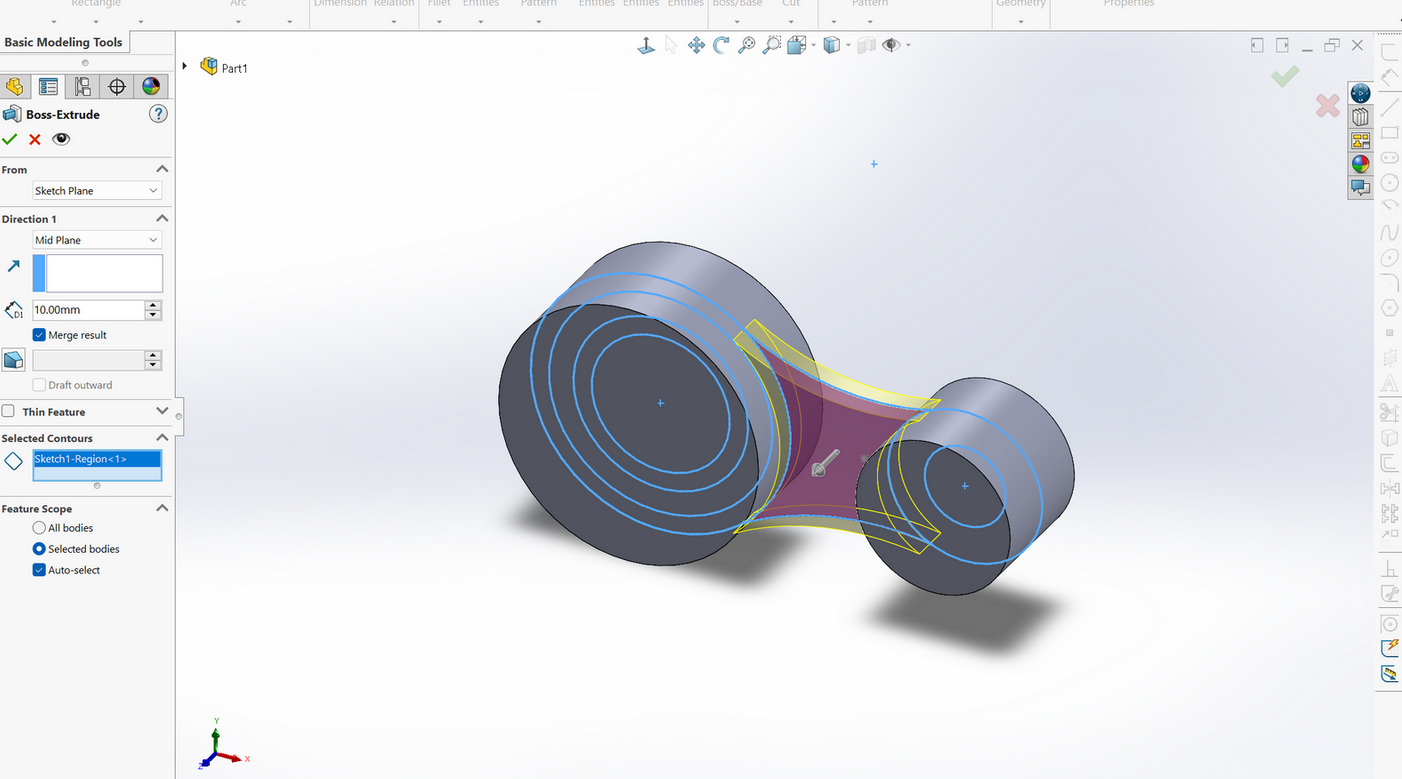

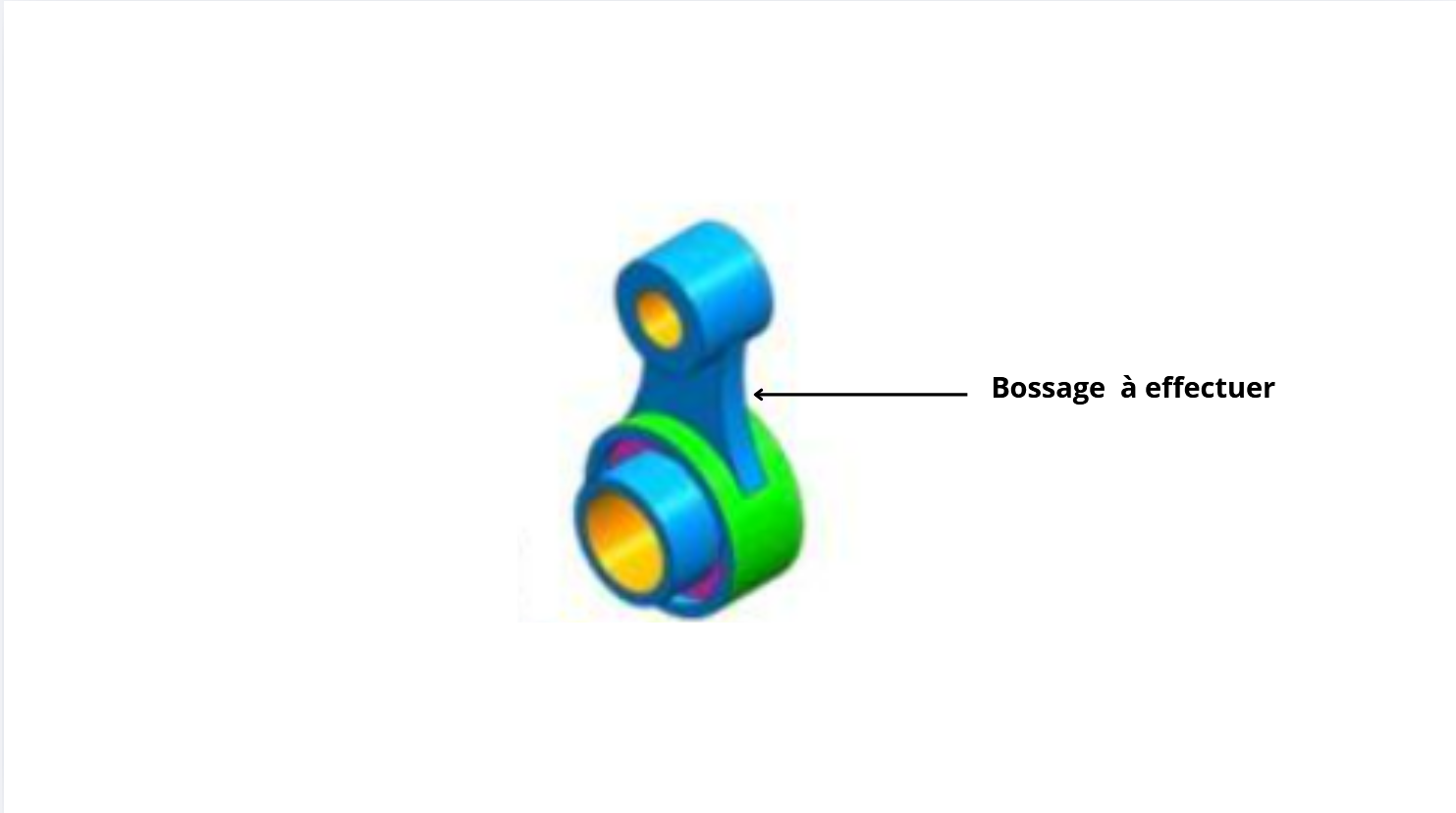

2D TO 3D CONVERSION (ARCS)

1. Click Extruded Boss
2. Select arc centers
3. Enter task-specified values
4. Confirm with green checkmark ✓

---

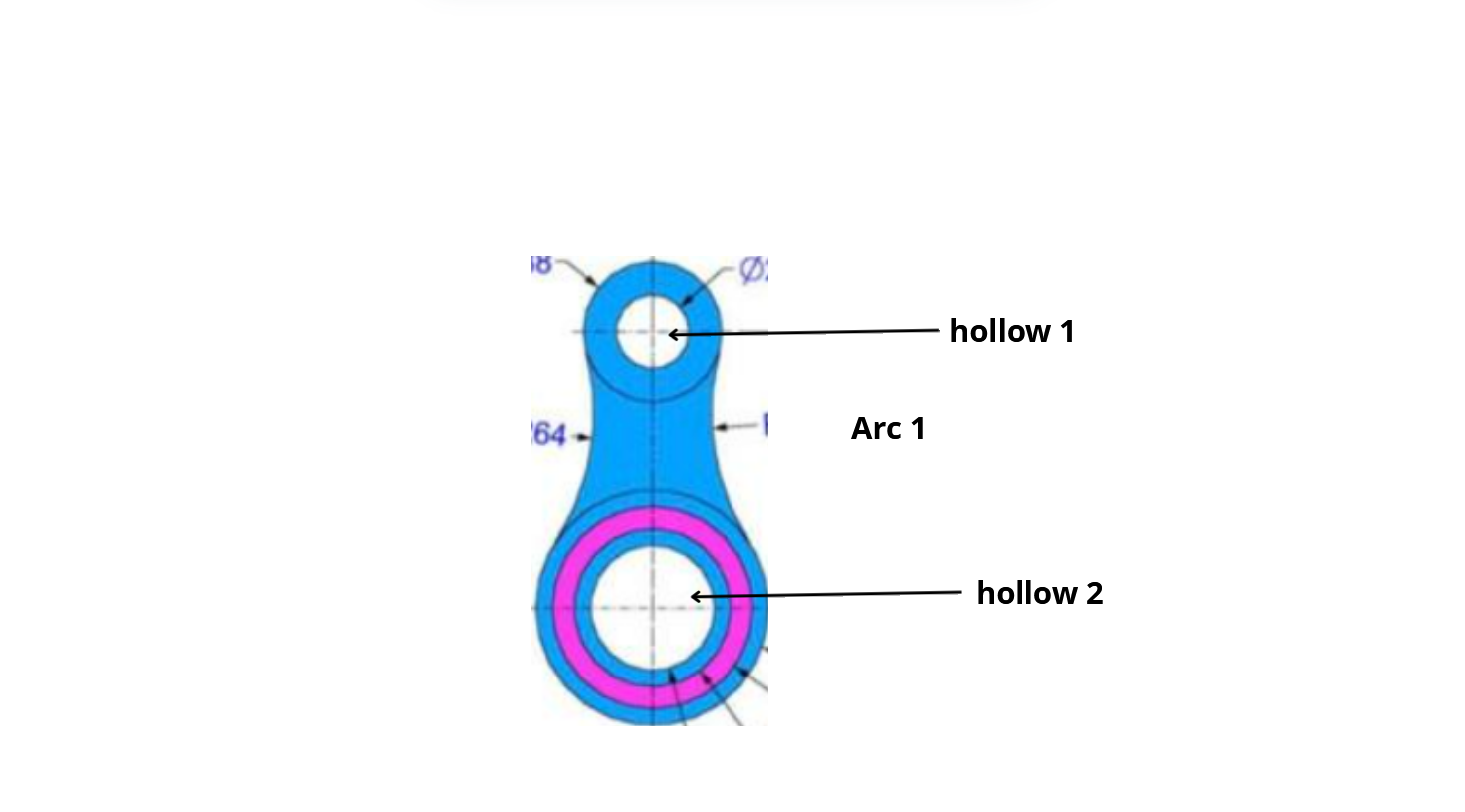

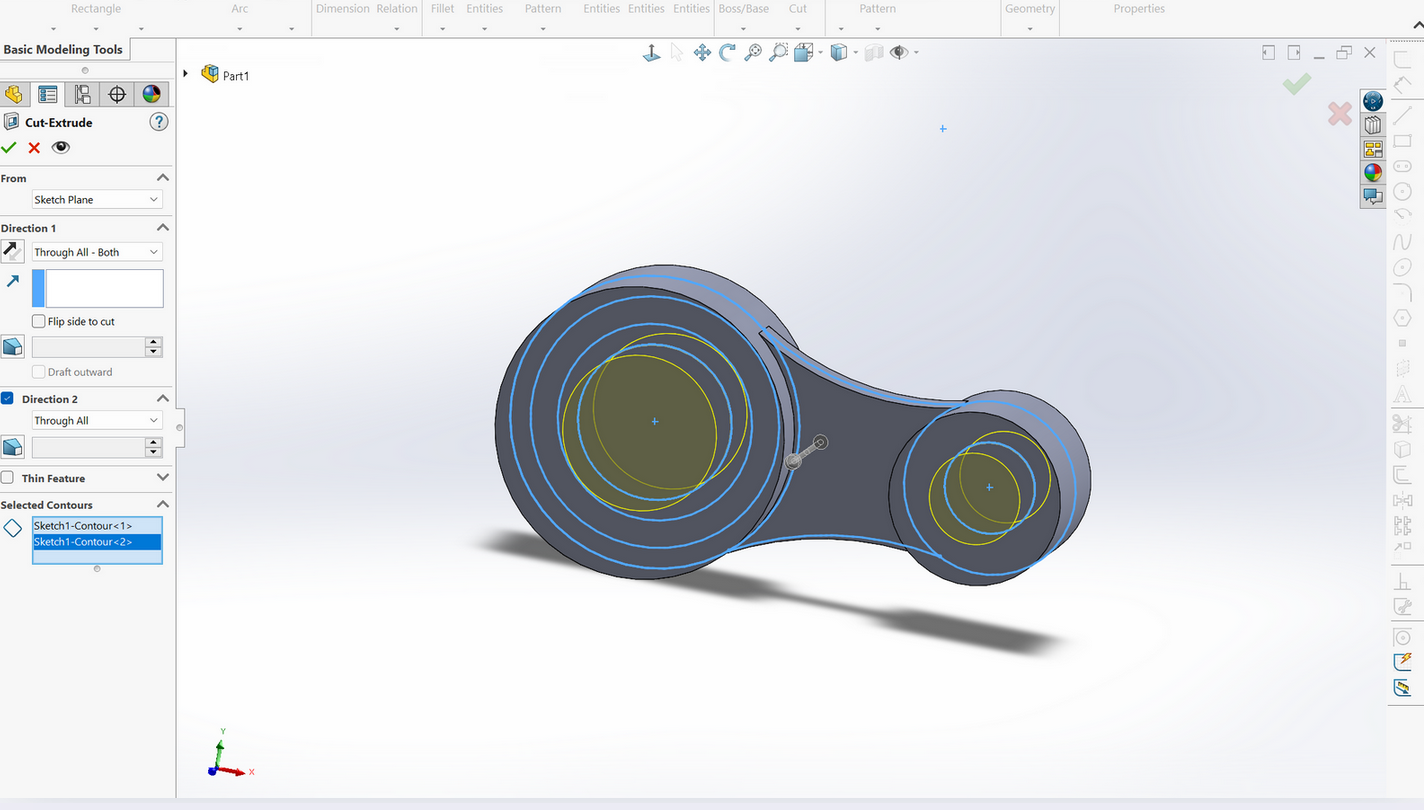

CREATING CENTRAL VOID

1. Select Extruded Cut
2. Set direction: "Through both"
3. Select void contours
4. Confirm removal

---

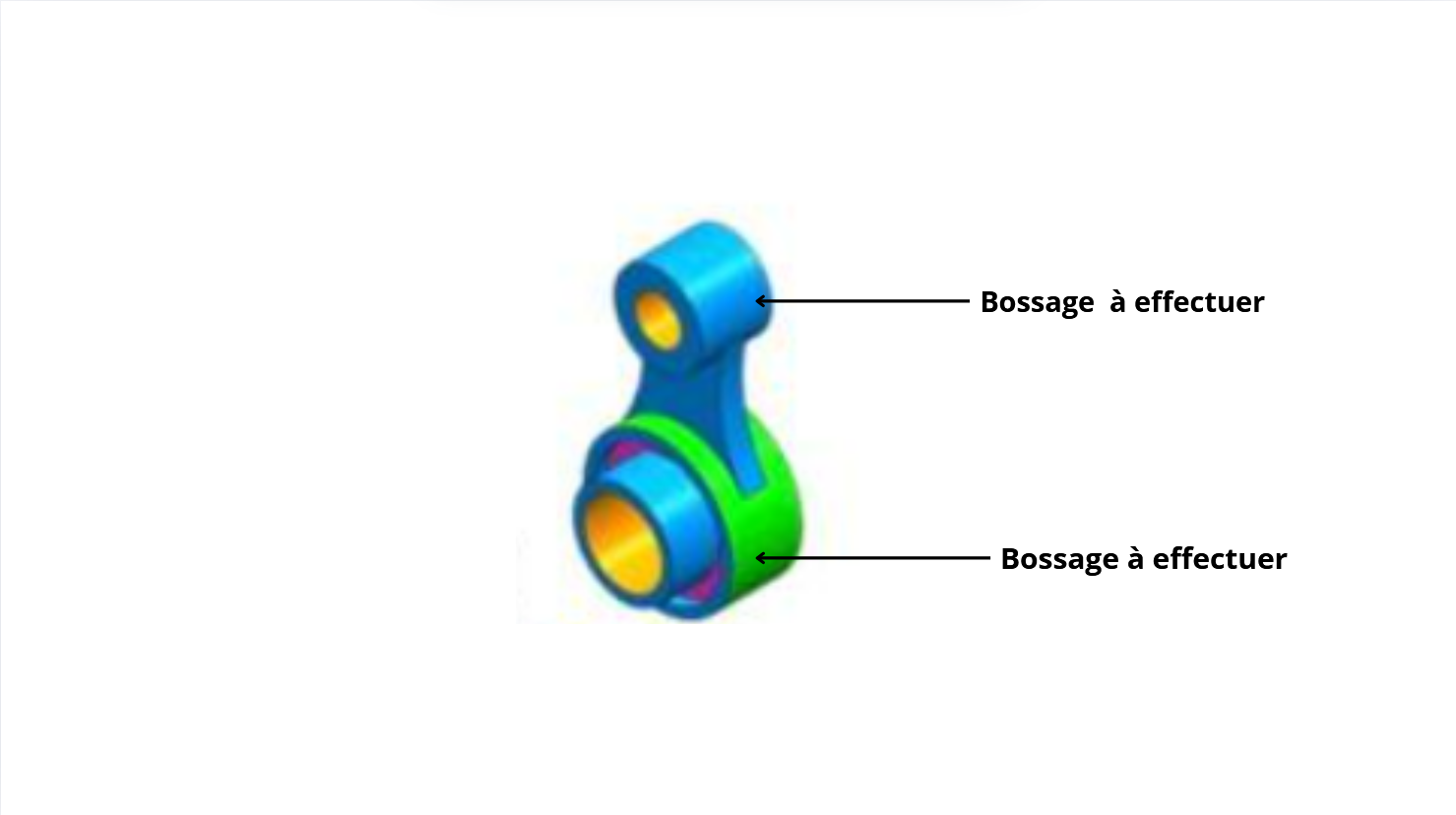

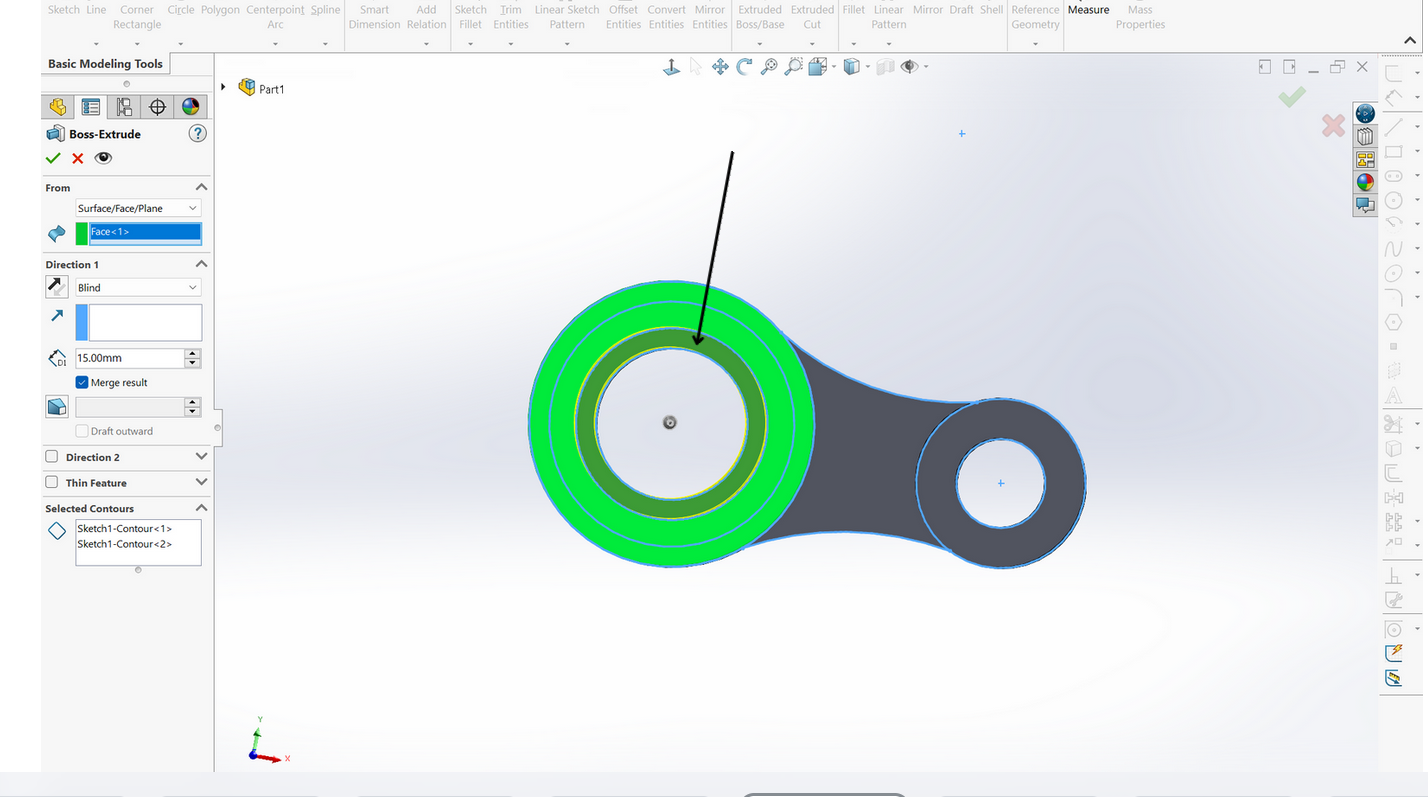

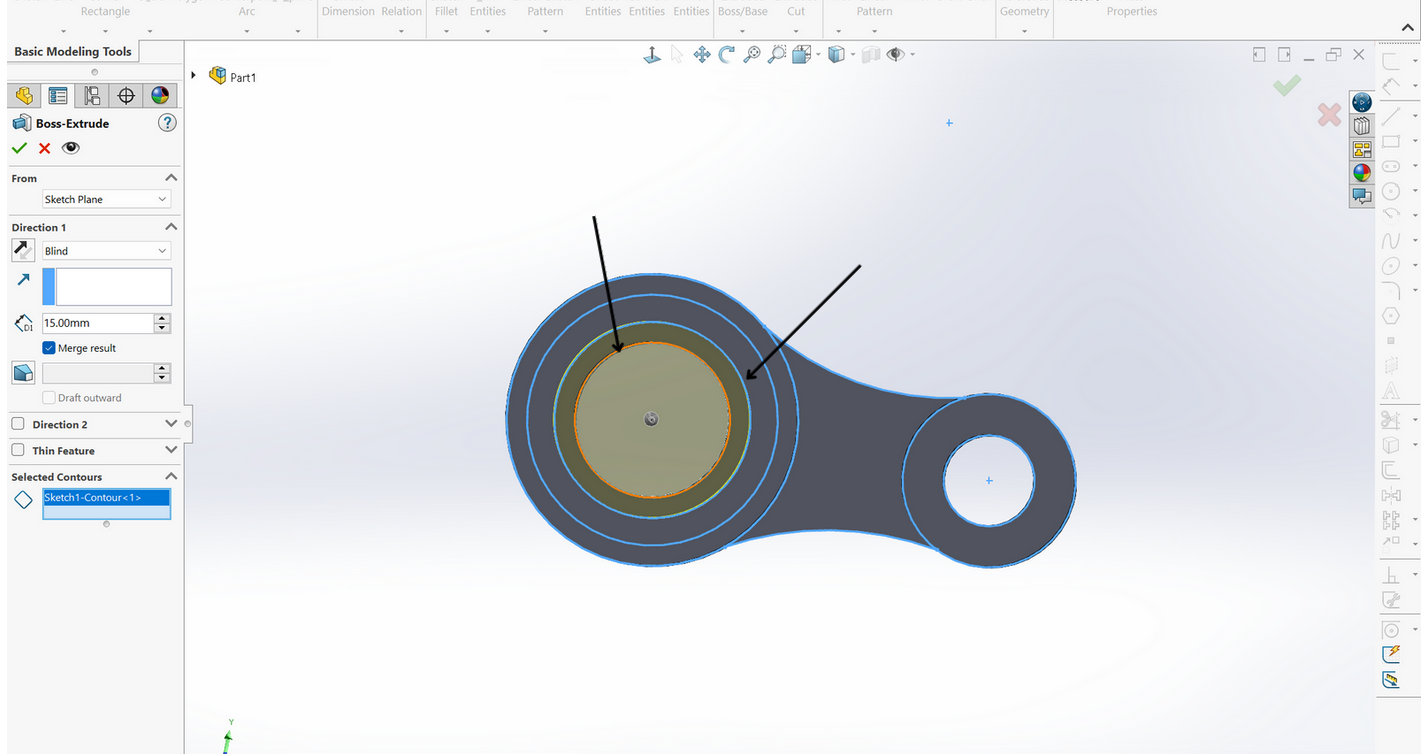

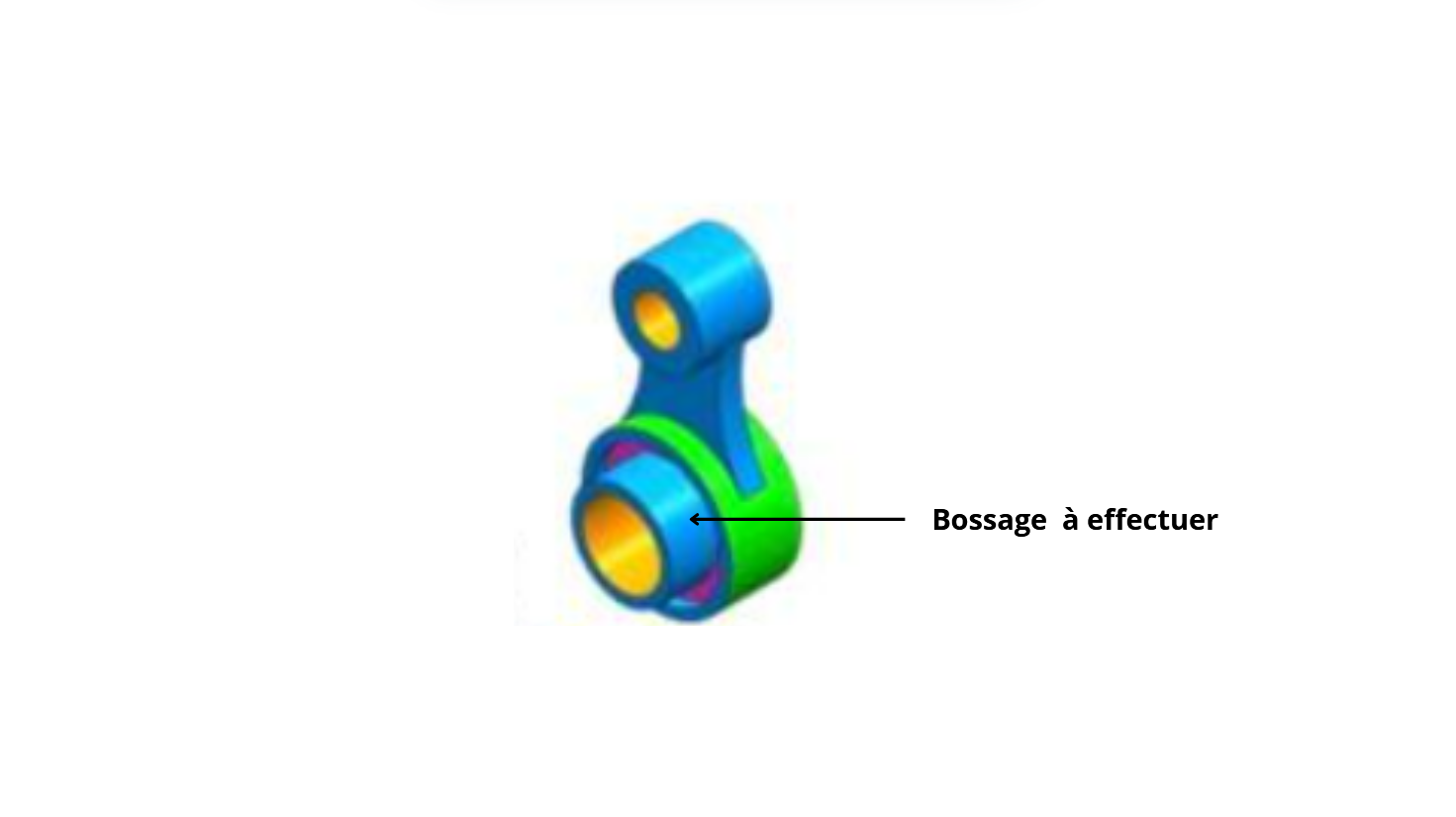

43MM DIAMETER BOSS CREATION

1. Click Extruded Boss

2. Select:

   • 43mm diameter circle
   • 34mm diameter circle

3. Change "From" setting:

   • Sketch plane → Surface/plane/face

4. Select target face

5. Confirm with ✓

---

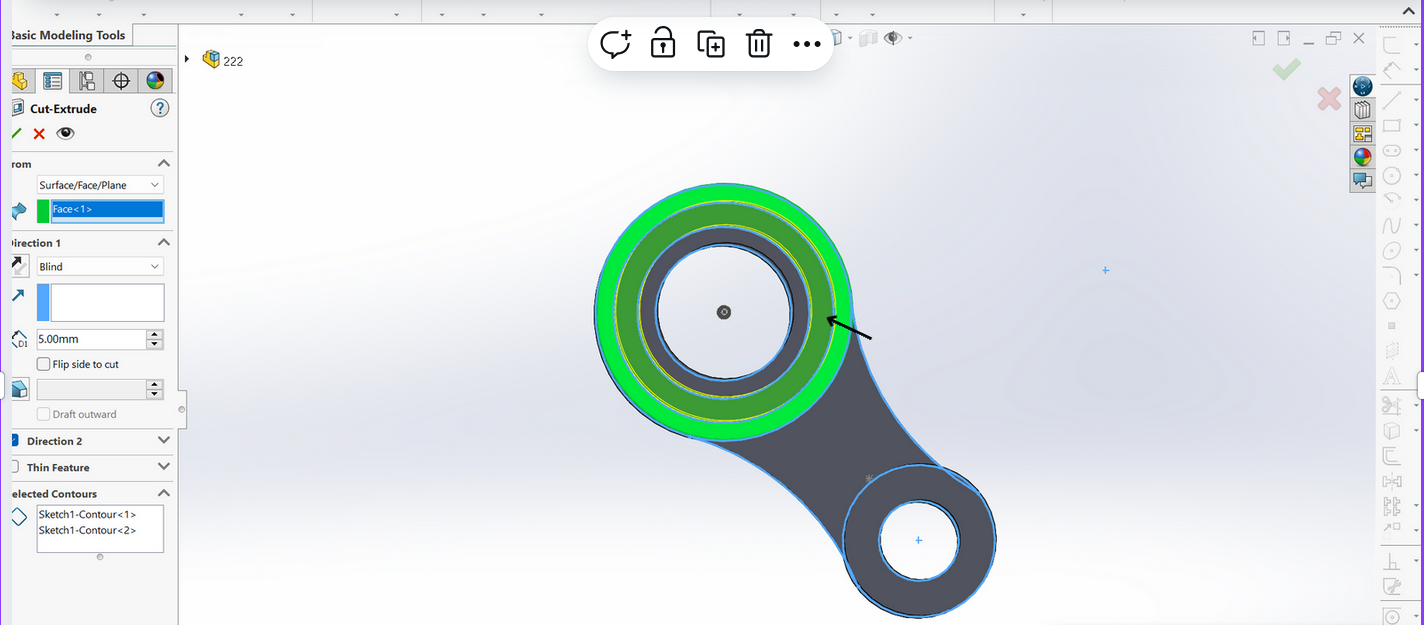

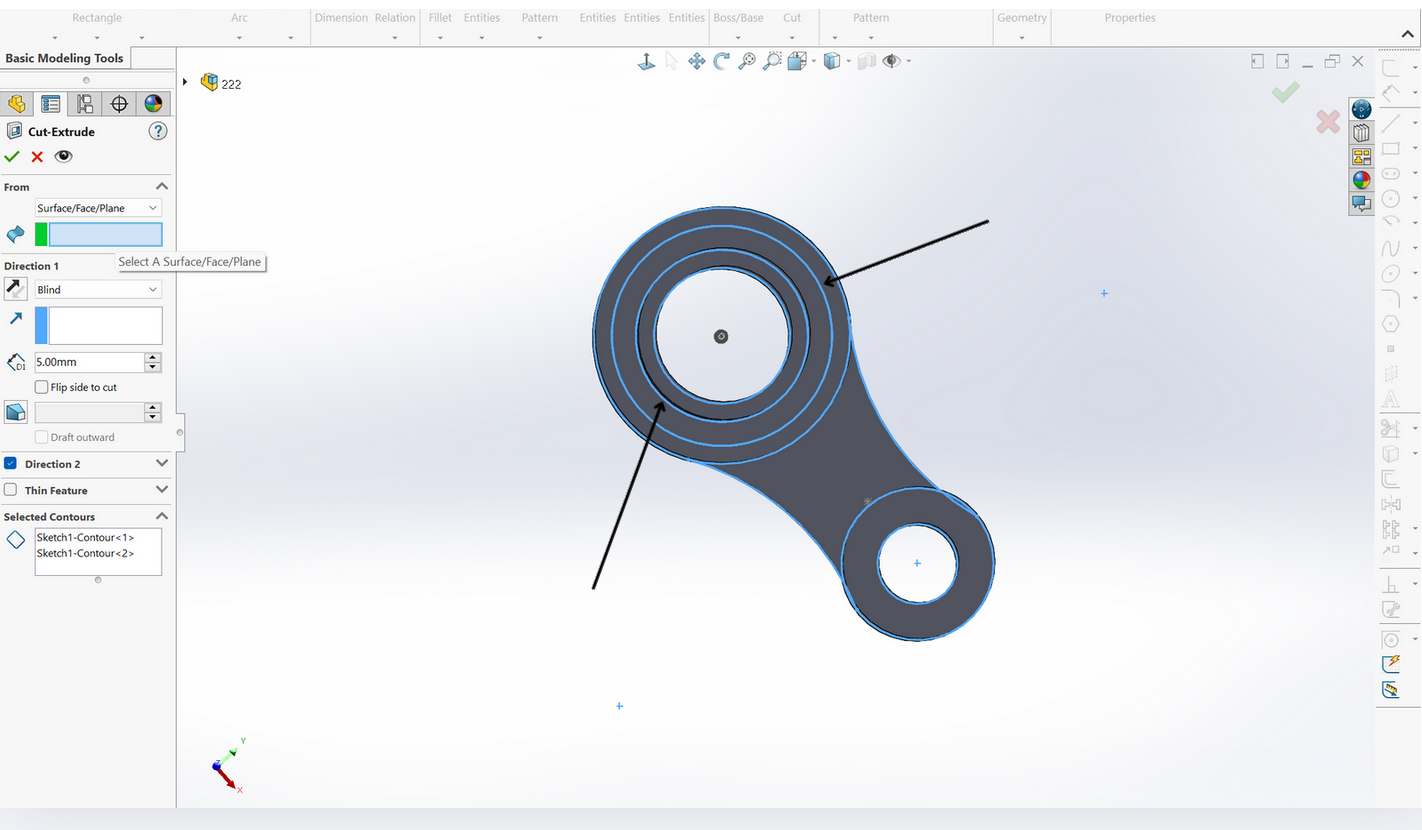

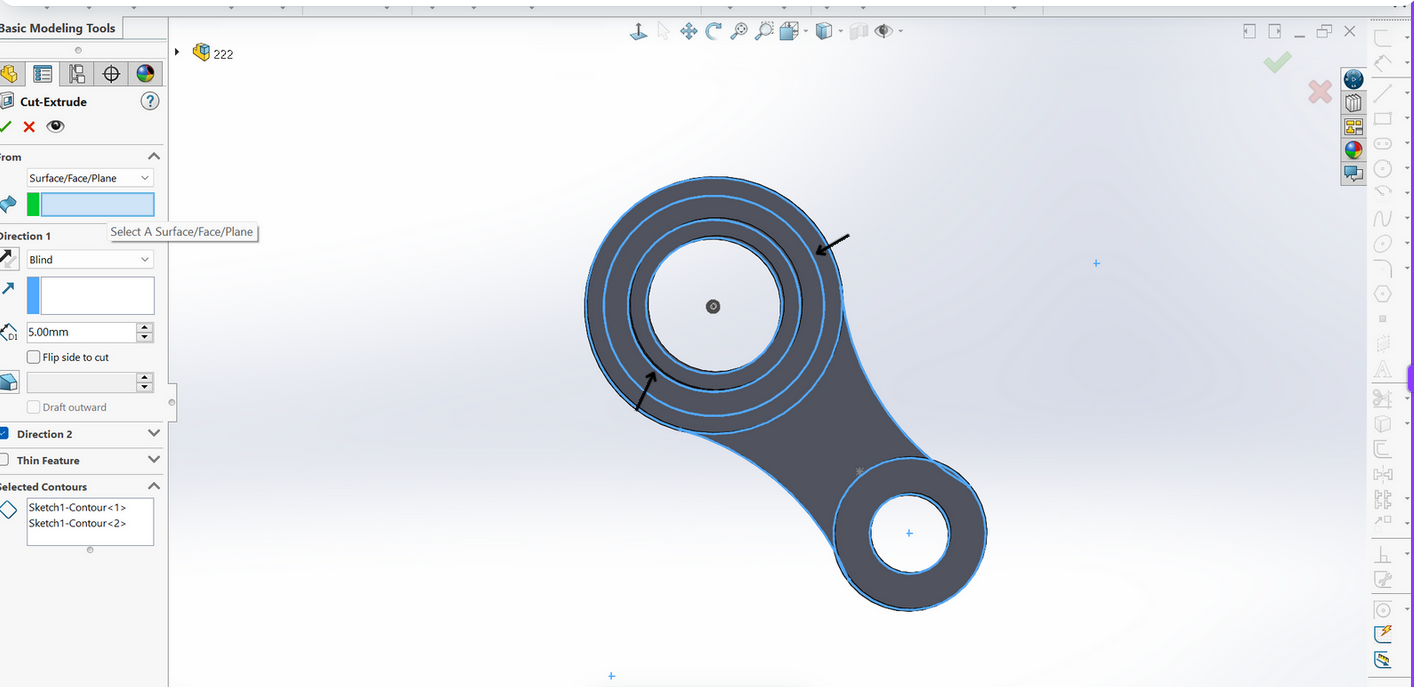

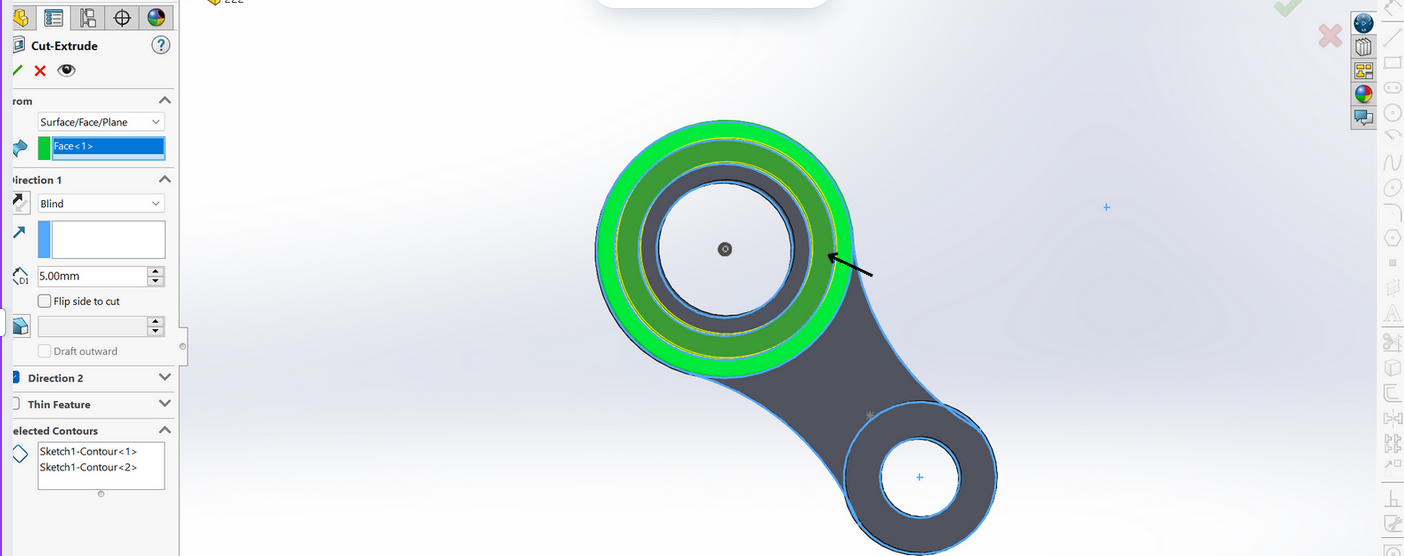

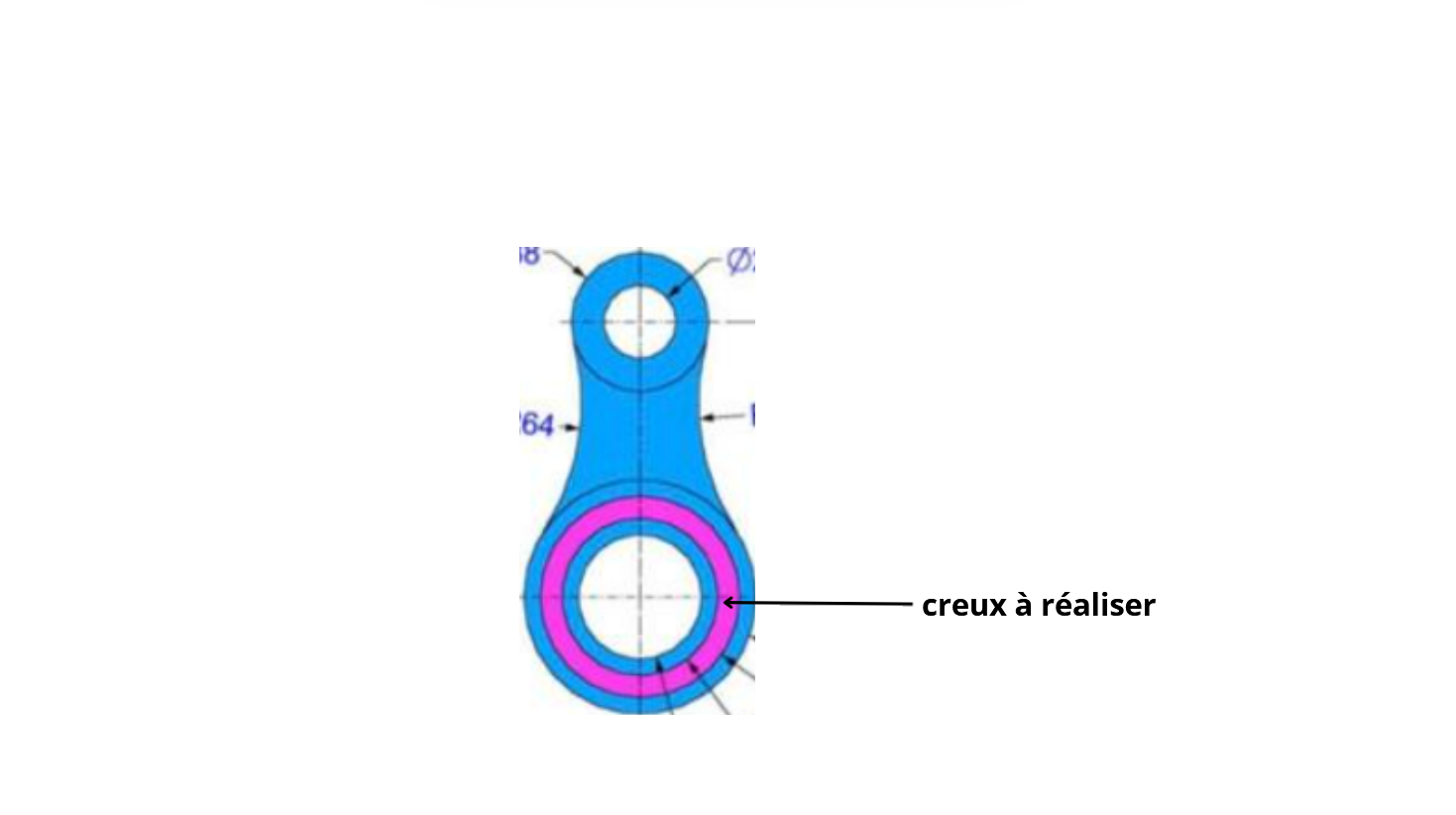

5MM RECESS CREATION

1. Click Extruded Cut
2. Select contours:
   • 55mm diameter circle
   • 43mm diameter circle
3. Set depth: 5mm
4. Change "From":
   • Sketch plane → Surface/plane/face
5. Select target face
6. Confirm with ✓

---

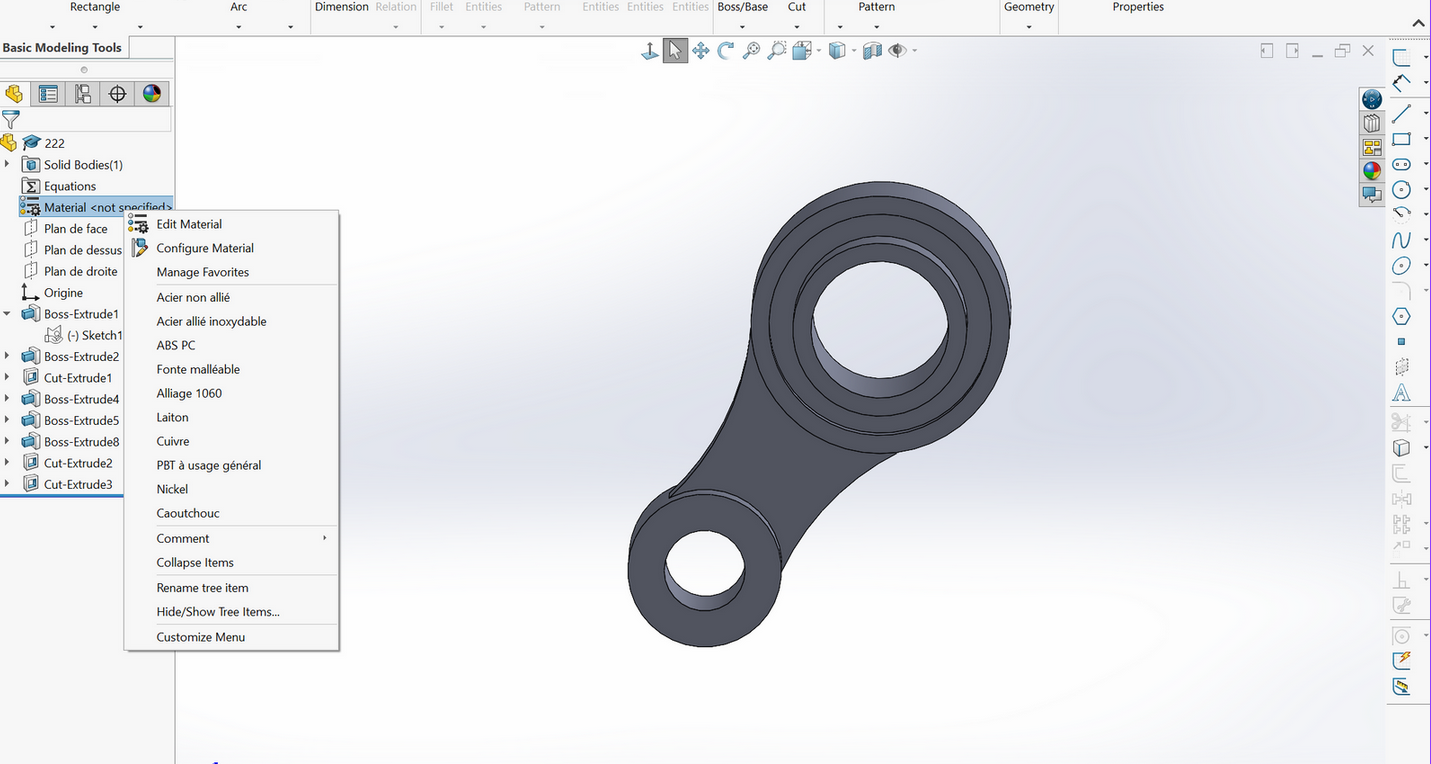

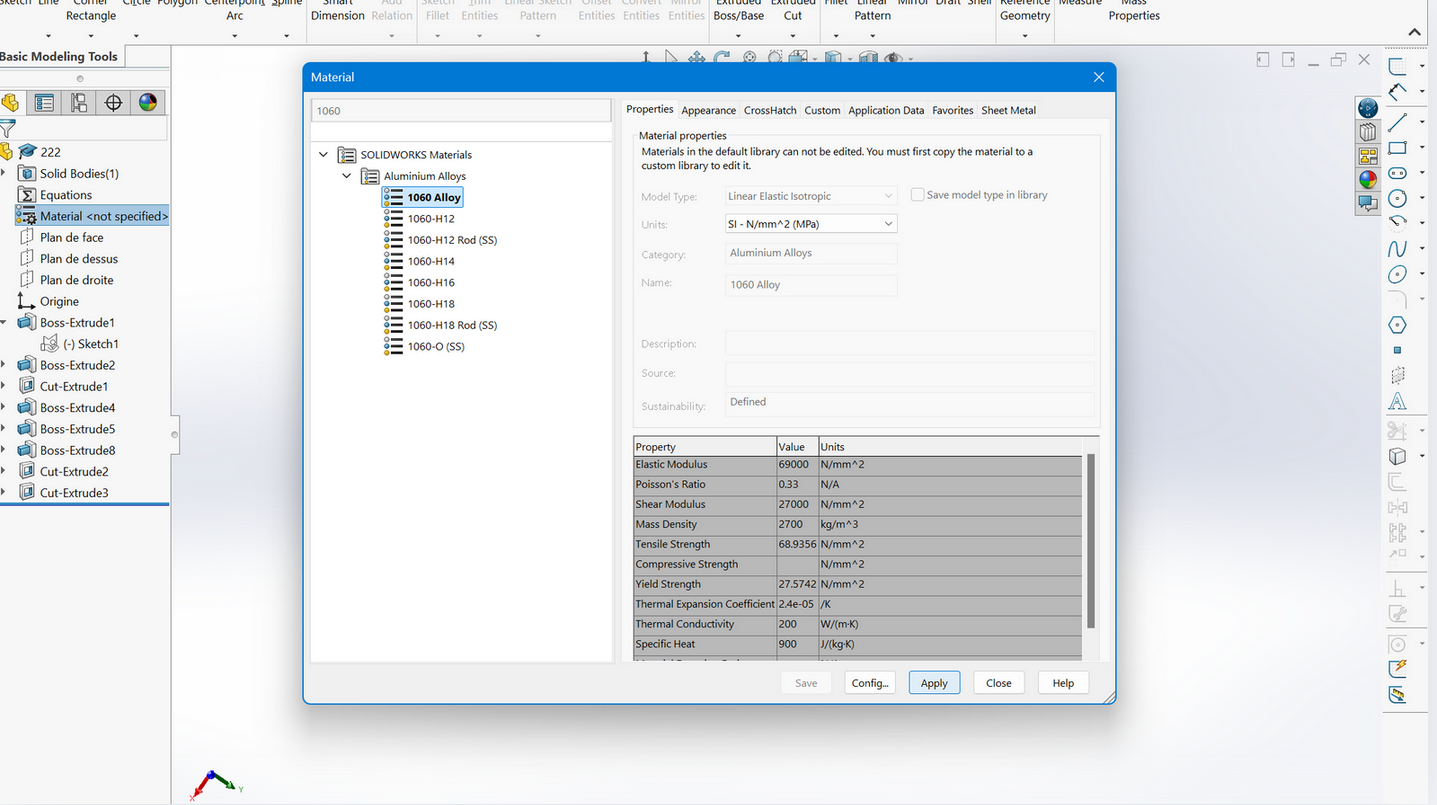

MATERIAL ASSIGNMENT

1. Right-click "Material"
2. Select "Edit Material"
3. Search desired material
4. Apply selection

---

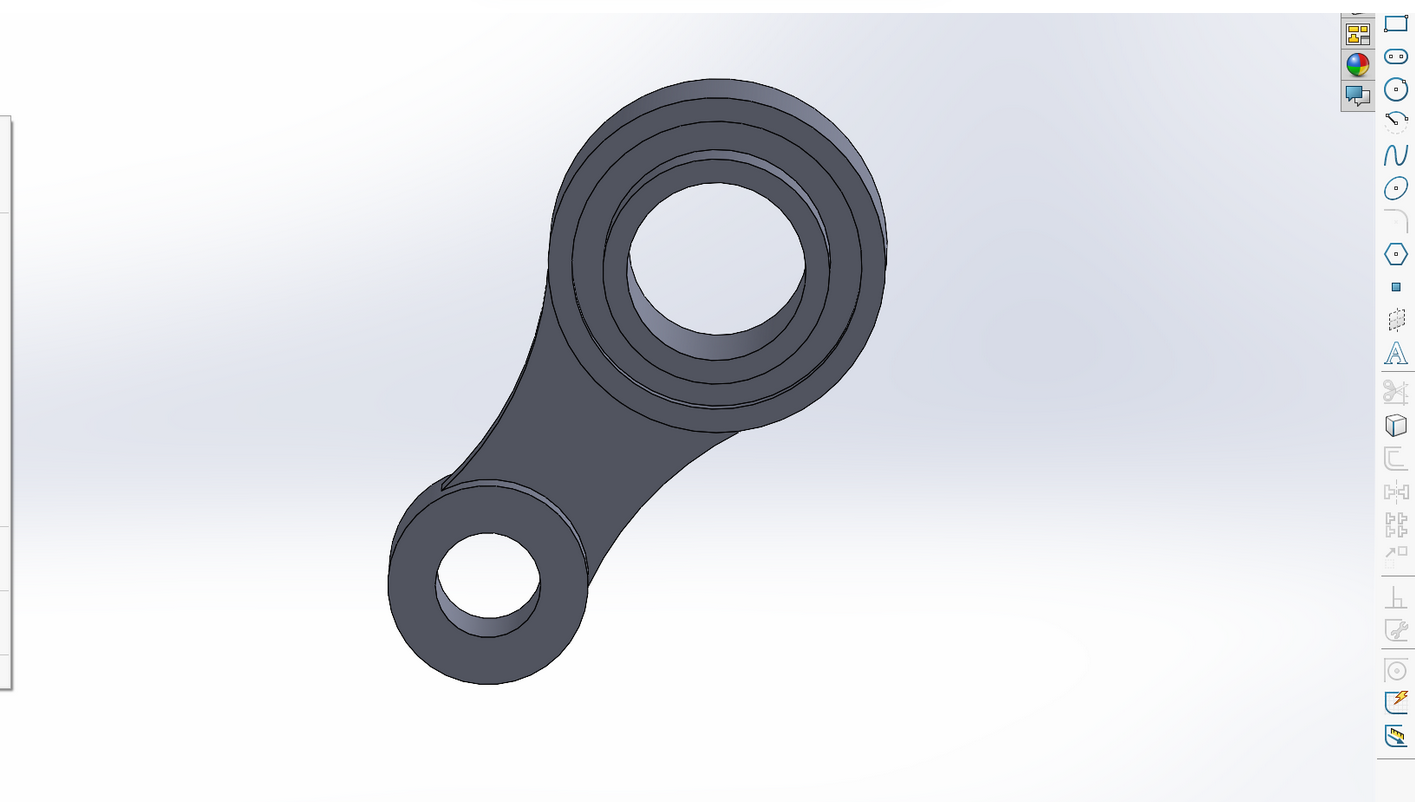

FINAL RESULT

Without Color:

With Color (Optional):

🎨 To colorize: Right-click face → Select color sphere → Choose color → Confirm

---

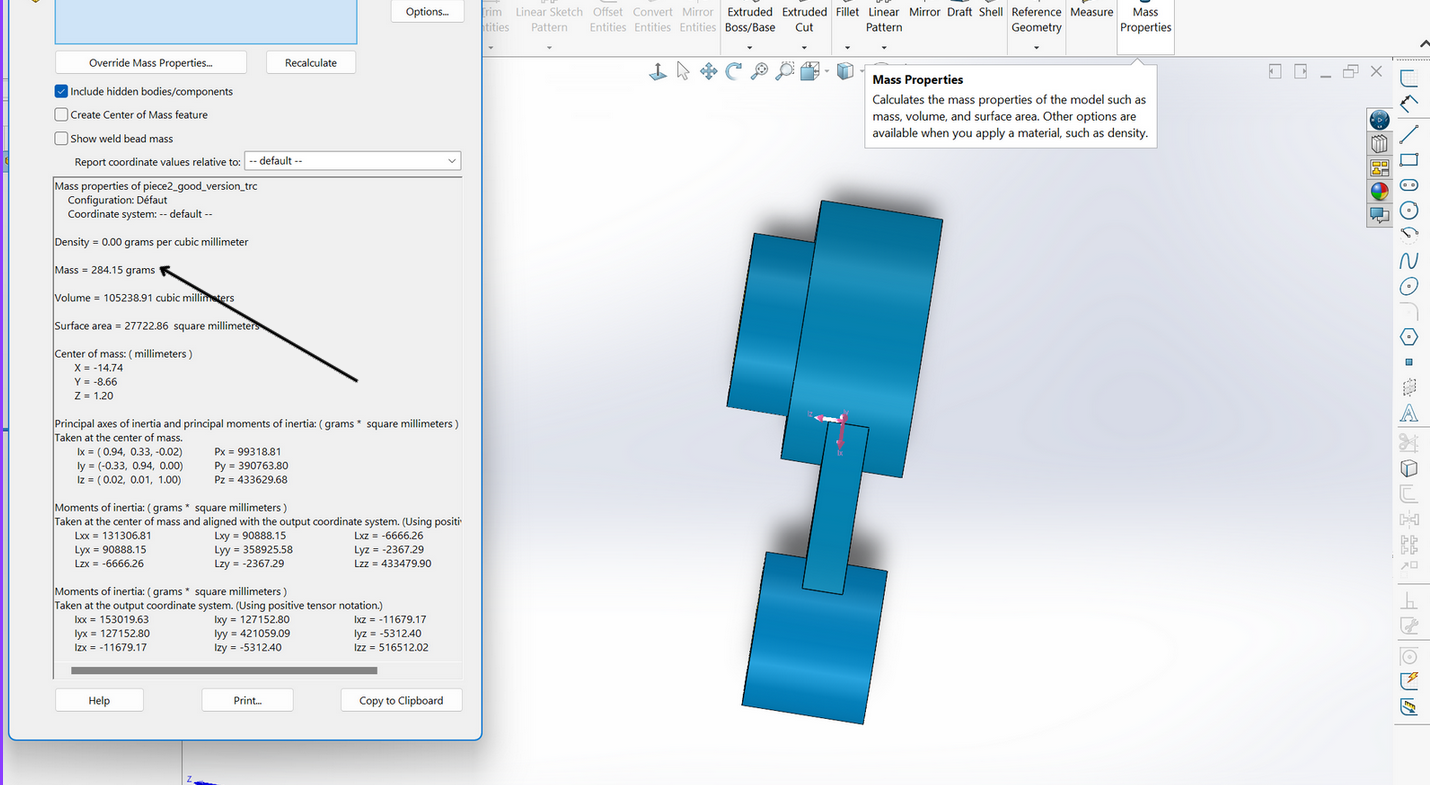

MASS CALCULATION

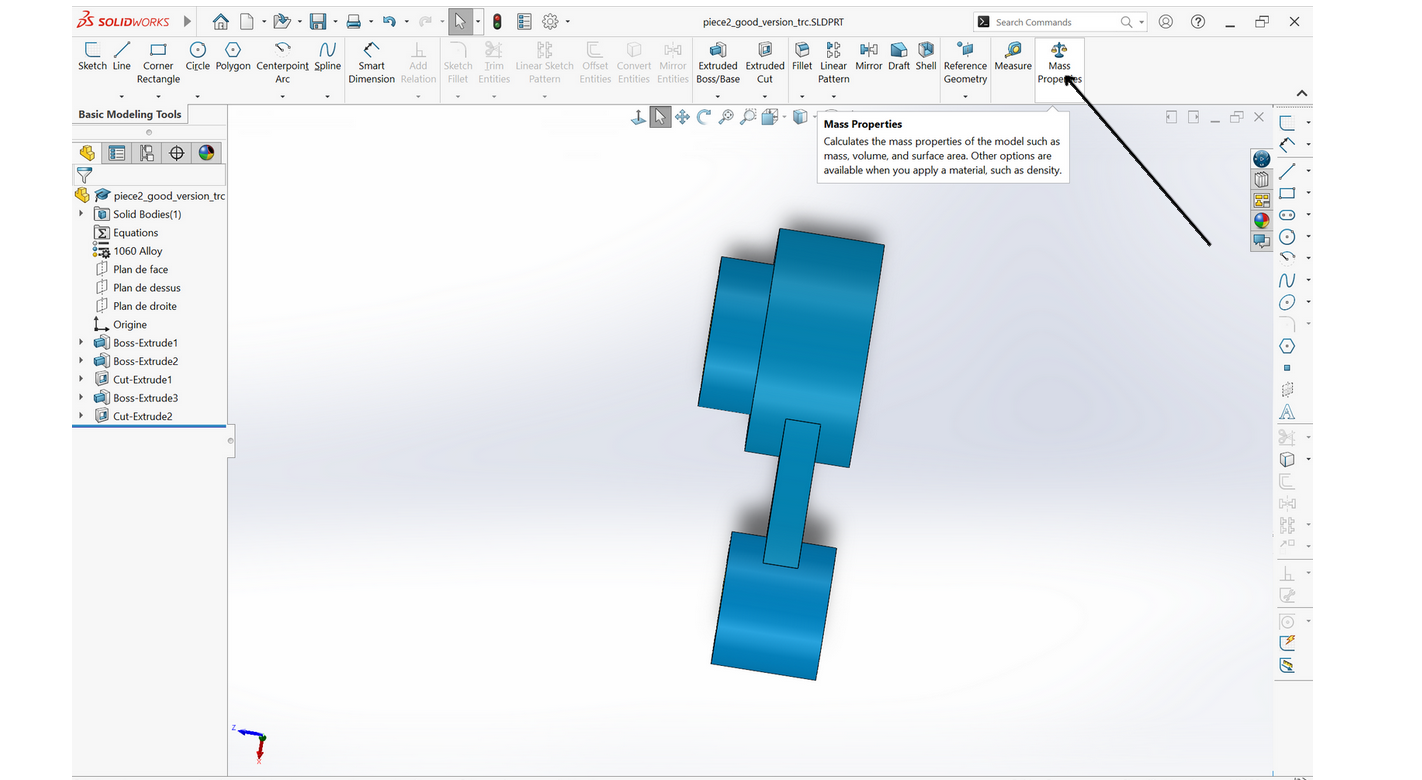

1. Click Mass Properties

2. Read results (grams)

3. Convert to kg: divide by 1000
   Final Mass: 284.15g

   ---
